Product Overview

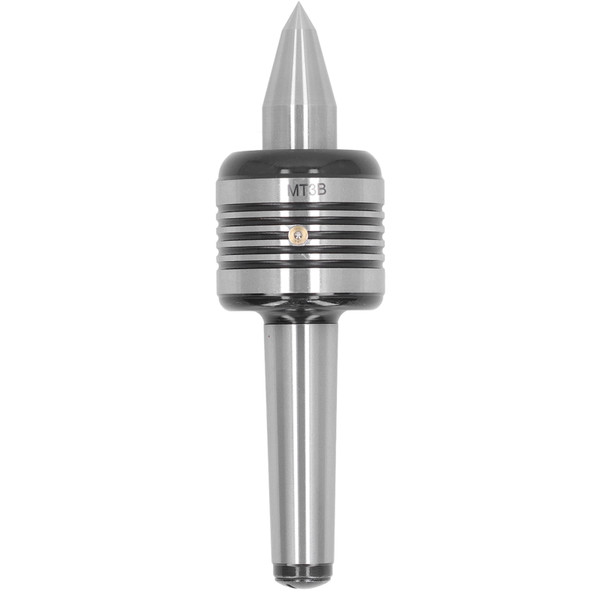

Item Type: Revolving Center
Model: MT3B
Shank Length: Approx. 85mm / 3.35in
Shank Diameter: Approx. 23.825mm / 0.94in
Body Length: Approx. 49mm / 1.93in
Body Diameter: Approx.54mm / 2.13in
Tip Length: Approx.45mm / 1.77in
Tip Diameter: Approx.24mm / 0.94in
Small Tip Diameter: Approx.10mm / 0.39in
Radial Overload: 2000N
Accuracy: 0.005
Material: High Carbon Steel
Taper: 60° to 30°
Application: For CNC lathe medium speed and light accuracy machining.
Model: MT3B
Shank Length: Approx. 85mm / 3.35in
Shank Diameter: Approx. 23.825mm / 0.94in
Body Length: Approx. 49mm / 1.93in
Body Diameter: Approx.54mm / 2.13in
Tip Length: Approx.45mm / 1.77in
Tip Diameter: Approx.24mm / 0.94in
Small Tip Diameter: Approx.10mm / 0.39in
Radial Overload: 2000N
Accuracy: 0.005
Material: High Carbon Steel
Taper: 60° to 30°
Application: For CNC lathe medium speed and light accuracy machining.
Features
1、Reliable Work: Adopting deep grooves ball bearing, thrust ball bearing and needle roller bearing for smoother working.
2、High Accuracy: 60° to 30° Morse taper and extended long head spindle for higher accuracy, which is safe and reliable.
3、Better Design: Dustproof and waterproof sealing together with cemented carbide embedded head enables high efficiency.
4、Practical Use: Specially designed for high speed lathe and CNC lathe, for medium speed and light accuracy machining.
5、Good Material: The application of high hardness high speed steel material enables good durability against wearing.
Package List
1 x Revolving Center
Package Weight and Dimension
| Weight | 2.51 lb |
| Width | 3.12 Inch |
| Height | 3.12 Inch |
| Length | 7.41 Inch |
