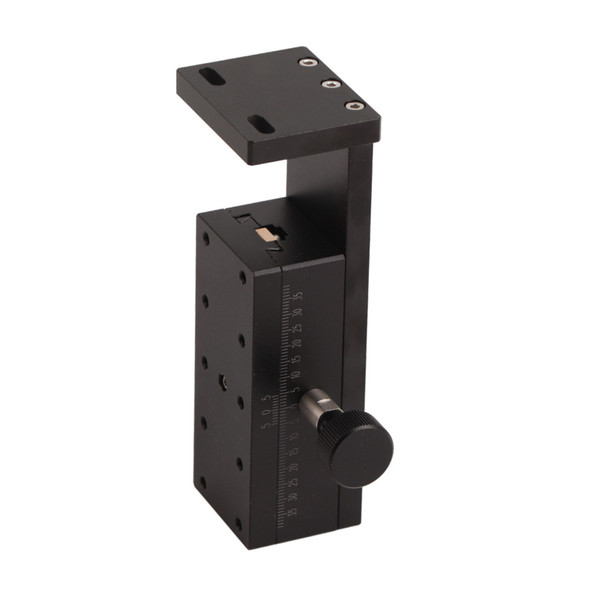

Manual Trimming Platform Adjustable Gear Guide High Accuracy Sliding Table 40x90mm

Item Type: Manual Trimming Platform
Model: SPWZ40-90
Table Size: Approx. 40 x 90mm / 1.6 x 3.5i
Overall Height: Approx. 133mm / 5.2in
Moving Direction: Z, 1 direction
Body Material: Aluminum alloy (black anodized)
Drive Method: Manually turn the knob to advance the gear drive (gear + rack)
Sliding Track: Gear guide
Guide Rail Type: Dovetail groove
Number Of Countertop Threaded Holes: 10
Threaded Hole Diameter: Approx. 4mm / 0.16in
Threaded Hole Depth: Approx. 6mm / 0.24in
Load Resistance: 98N（10Kgf）
Move Stroke: ±30mm
Minimum Scale: 0.01mm
Parallelism: 0.06mm
Parallelism of Movement: ≤0.1mm/60mm
Scope of Application: Optical instruments, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, photographic equipment, handling machines, processing machines, printing machines and other

Features

1、The main body adopts aluminum alloy material, lightweight, sturdy and abrasion resistant, scratch-resistant, drop-resistant and corrosion-resistant
2、Gear rotation is controlled by the handle, smooth and stable to move
3、With R corner protection, safe to protect
4、With dovetail groove guide, high accuracy and large load capacity
5、Suitable for optical instruments, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, photographic equipment, handling machines, processing machines, printing machines and other

Package List

1 x Manual Trimming Platform
