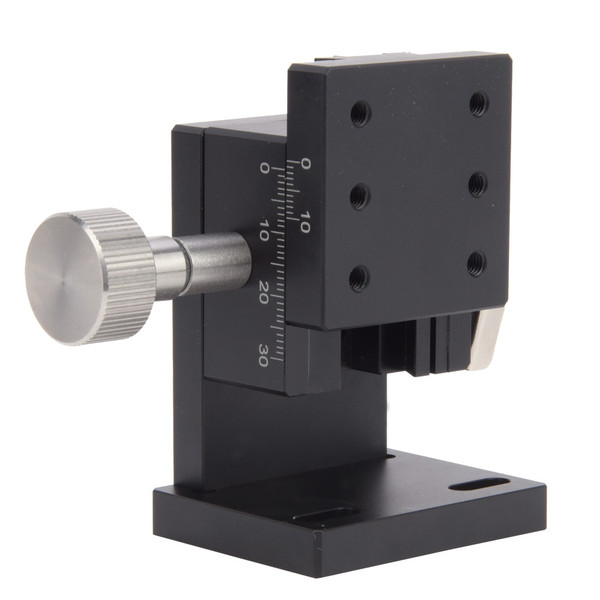

Manual Z Trimming Platform Gear Guide High Accuracy Adjustable Lifting Stage 40x40mm

Item Type: Manual Trimming Platform
Model: SPWZ40-40
Table Size: Approx. 40 x 40mm / 1.6 x 1.6in
Overall Height: Approx. 65mm / 2.6in
Moving Direction: Z, 1 direction(vertical direction)
Body Material: Aluminum alloy (black anodized)
Movement: Rotate the gear and rotate the handle to advance
Sliding Track: Gear guide
Guide Rail Type: Dovetail groove
Number Of Countertop Threaded Holes: 10
Threaded Hole Diameter: Approx. 4mm / 0.16in
Threaded Hole Depth: Approx. 6mm / 0.24in
Load Resistance: 29.4N(3Kgf)
Up and Down Stroke: ±10mm
Minimum Scale: 0.01mm
Parallelism: 20μm
Parallelism of Movement: ≤0.01mm/13mm
Scope of Application: Optical instruments, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, conveyors, processing machines, printing machines and other

Features

1、The main body is made of aluminum alloy material, which is light weight, sturdy, resistant to friction
2、Gear rotation is controlled by the handle, smooth and stable to move
3、With dovetail groove guide, high accuracy and large load capacity
4、With R corner protection, safe to protect
5、Suitable for optical instruments, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, conveyors, processing machines, printing machines and other

Package List

1 x Manual Trimming Platform
