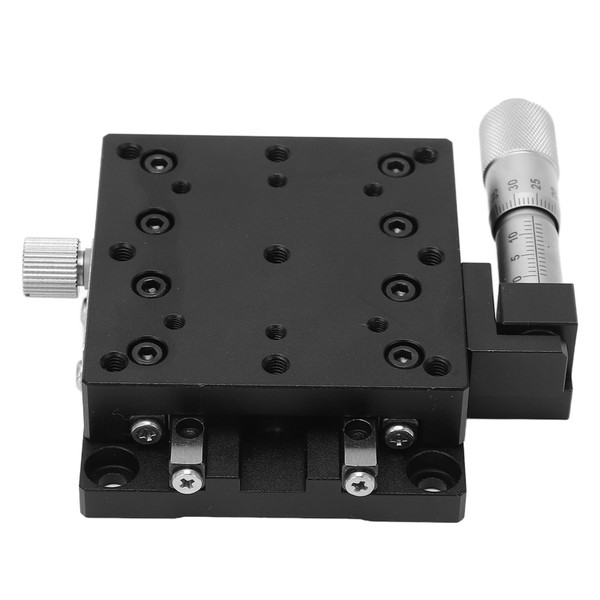

Product Overview
Material: Aluminum alloy
Minute Card Scale: 0.01mm
Table Size: Approx. 60 x 60mm / 2.36 x 2.36in
Guide Way: Cross roller type
Axes: X axes (single axes)
Load Bearing Capacity: 49.0N
Stroke: ±6.5mm
Parallelism: 30μm
Movement Parallelism: 10μm
Straightness: 3μm
Vertical Yaw: 25 Second
Lateral Yaw: 15 Second
Features
1、FOR PRODUCTION: Fine tuning slide table support manual accurate adjustment of registration, for high accuracy production and processing products
2、WIDE APPLICATIONS: Used for laboratory accurate testing, mechanical equipment positioning and movement, various optical fiber coupling, optical waveguide alignment, fiber core alignment, packaging systems, capacitive touch screen production equipment, tooling fixtures, optical instruments, non standard equipment
3、CORROSION RESISTANT MATERIAL: Aluminum alloy after black anodized, corrosion resistant to ensure high accuracy
4、GUIDE WAY: Adopt cross roller guide, load capacity for 49.0N, possess stable structure and excellent performance
5、EXCELLENT PERFORMANCE: Made with fine workmanship, possess compact appearance and stable performance, can make sure durability and stability
Package List
1 x Manual X Axes Linear Stage
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 4.29 Inch |
| Height | 1.17 Inch |
| Length | 4.29 Inch |
