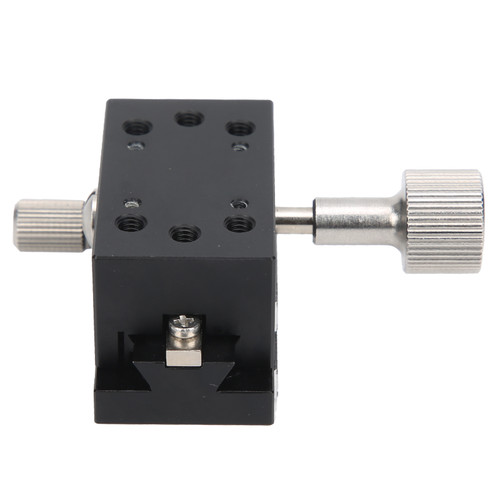

Product Overview
Sliding Table Material: Aluminum alloy
Feeding Method: Knob type
Moving Guide: Dovetail guide
Surface Treatment: Anodic oxidation treatment
Horizontal Movement Accuracy: 30μm
Vertical Movement Accuracy: 20μm
Table Size: Approx. 60 x 60mm / 2.4 x 2.4in
Horizontal Bearing Load: 29.4N
Vertical Bearing Load: 14.7N
Moving Amount(X Distance): Approx. ±21mm / 0.8in
The Amount of Movement in one Rotation: Approx. 4.2mm / 0.2in
Corresponding for Misumi Model: XSC60
Features
1、The main body is made of aluminum alloy material, which is light in weight, strong, friction‑resistant and quiet
2、The surface is treated with black anodic oxidation, which is more beautiful and elegant, scratch‑resistant, drop‑proof and corrosion‑resistant
3、Gear rotation handle control, with dovetail groove guide, high accuracy, smooth operation, large load resistance and stable movement
4、The sliding linear stage can corresponding for Misumi XSC60 model, simple and convenient to operate
5、Suitable for optical equipment, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, photographic equipment, handling machines, processing machines, medical equipment, printing machines and others
Package List
1 x Sliding Linear Stage
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.51 Inch |
| Height | 1.56 Inch |
| Length | 5.85 Inch |
