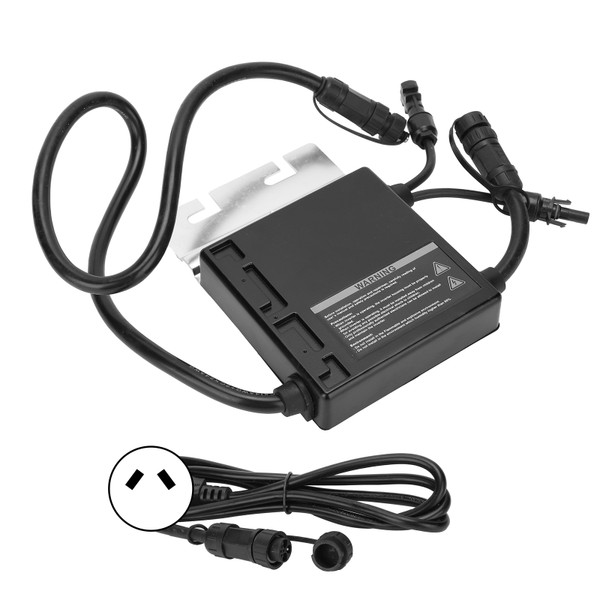

Micro Inverter Solar Grid Tie Microinverter PushPull Type AC Current Converter SMG260W(AC220V Output )

Item Type: Micro Inverter
Model: SMG-260W
Product Certification: Ce
Circuit Topology: Push-pull
Solar Panel: Voc: 42-46V, Vmp: 35-39V
DC Input Range: 24-45V
Maximum DC Current: 15A
Output Frequency: 50/60HZ
Output Power: 250W
Inverter Efficiency: 95%
Power Factor: 97%
Total Harmonic Distortion: <3%
Phase Shift: <1%
Peak Efficiency: > 90%
Stable Efficiency: > 90%
Working Temperature: -25℃-65℃
Waterproof Rating: IP65

Features

1、Imported industrial electronic components and innovative MPPT technology are selected, the efficiency is over 99%, and the response is faster and more sensitive.
2、The inverter has a modular design, small size, simple system configuration, flexible assembly, and strong system scalability.
3、DSP (digital signal processor) and accuracy sensor IC are used to accurately obtain electrical parameters.
4、Wi-Fi Data Sender and Mini PC realize web-based monitoring and analysis together, so you can obtain and monitor solar power information anytime and anywhere.
5、The shell is made of aluminum alloy material, heat-resistant and corrosion-resistant, and adopts high-frequency isolation transformer, which has high safety.

Package List

1 x Micro Inverter

1 x Power Cable

1 x User Manual
