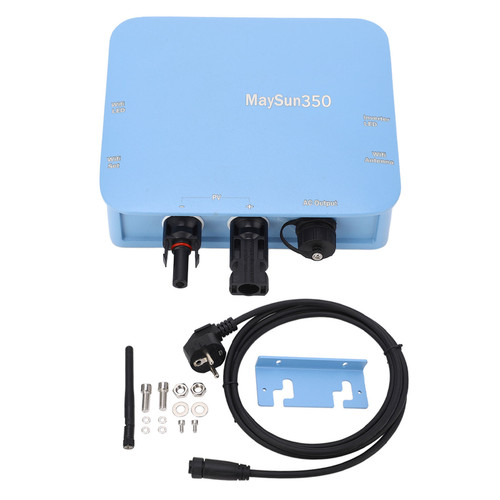

Solar Micro Inverter Aluminium Alloy DC to AC Grid Connected Micro Inverter for Solar System AC 110V

Item Type: Micro inverter
Material: Aluminium alloy
Weight: Approx. 910g/32.1oz
Product Size: 27x10.7x4cm/10.6x4.2x1.6in
Photovoltaic Output:
Number of Multi Contact 4 Connectors at Input End: 1 set(Group)
Maximum Power Point Tracking Range: 24V-40V
Working Voltage Range: 18V-50V
Maximum DC Input Voltage: 50V
Starting Voltage: 18V
AC Output:
Single Phase Power Grid Type: 120V, 230V
Rated AC voltage: 120VAC, 230VAC
Output Voltage Range: 120VAC: 80V-160V, 230VAC: 180V-280V
Rated AC Frequency: 50Hz, 60Hz
Output Frequency Range: 50Hz: 47.5Hz-52.5Hz, 60Hz: 57.5Hz-62.5Hz
Output Power Factor: ＞ 0.99
Efficiency:
Maximum Conversion Efficiency: 92%
CEC Weighted Efficiency: 120VAC: 90%, 230VAC: 90.5%
Tracking Efficiency: 99.9%
Night Loss: <700mW
Mechanical Data:
Working Environment Temperature: - 40℃ - +65℃
Storage Ambient Temperature: - 40℃ - +85 ℃
Protection Grade: IP55
Cooling Mode:Natural cooling, no fan
Other Characteristics:
Isolation Characteristics: High frequency transformer isolation
Integrated Grounding: The PE end of the AC cable is the grounding wire of the equipment, without other grounding ports
Protection Method: Island protection, voltage protection, frequency protection, temperature protection, current protection, etc

Features

1、Purpose: The solar micro inverter is a device that converts the solar panel DC to AC, with small volume and capacity, and is commonly used in small solar systems.
2、High Conversion Efficiency: This highest conversion efficiency of this micro inverter is 92 percent, which can be well converted and has strong practicability.
3、Multiple Protection: The grid connected micro inverter has island protection, voltage protection, frequency protection, temperature protection, current protection and other protection methods, which is safe to use.
4、Aluminum Alloy Material: This solar micro inverter is made of premium aluminum alloy material, which has a sturdy structure and can be used for a long time.
5、Temperature Resistant: The DC to AC micro inverter can work at minus 40celsius degree and plus 65 celsius degree, which can meet the needs of daily use.

Package List

1 x Micro Inverter

1 x AC Cable

1 x Instruction
