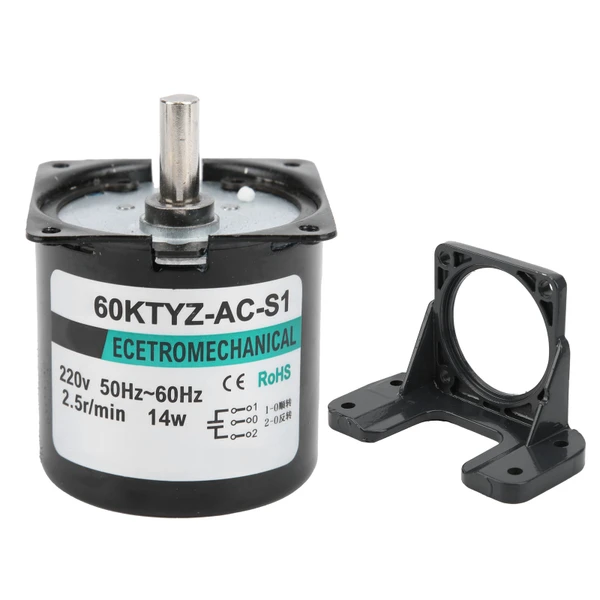

Micro Motor AC Synchronous Metal Gear Speed Reduction Engine Machinery Device Accessories2.5rpm/min AC220V

Item Type: Micro Motor
Model: XD-60KTYZ + bracket
Material: Copper
Output Shaft Size: Approx. 7 x 19mm / 0.3 x 0.7in
Protection Level: IP20
Insulation Resistance: After the rated operation of the motor under normal temperature and humidity, when measuring the insulation resistance between the coil and the motor shell with a DC500V resistance meter, it does not exceed 20MΩ
Temperature Rise: When the gearbox or equivalent heat sink is installed, and the rated operation is performed under normal temperature and humidity, it is normal to measure the temperature rise of the coil by the resistance method to 75-80℃.
Insulation Class: E class (130℃)
Operating Environment Temperature: Motor: -10~+40℃ (no icing)
Use Environment Humidity: 85% or less (no condensation)
Whether Support CW and CCW: Yes
Whether Support Speed Regulation: No

Features

1、The micro motor adopts all‑metal gears, which is wear‑resistant and runs smoothly and without noise.
2、Red copper coil stator and rotor, the deceleration resistance has increased conductivity, so that the motor torsion is increased.
3、High temperature grease lubricating oil has the characteristics of low friction, noise reduction, and slow temperature rise.
4、Using high-quality magnetic tiles to work, higher efficiency and less dynamic loss.
5、Widely used in micro-machines in various industries, such as household appliances, CNC machine tools, electronic manufacturing equipment, etc.

Package List

1 x Micro Motor

1 x Bracket
