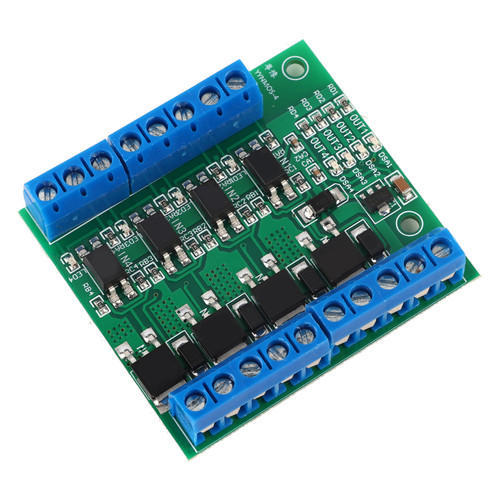

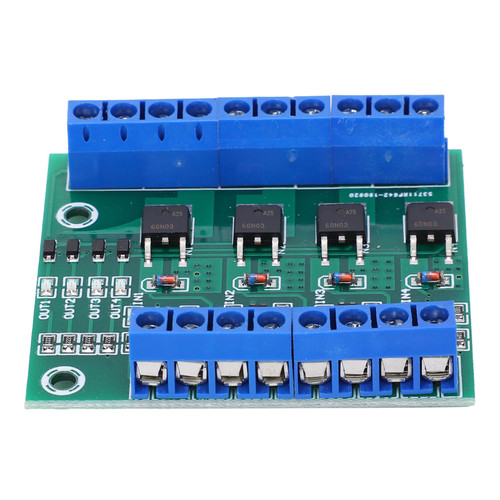

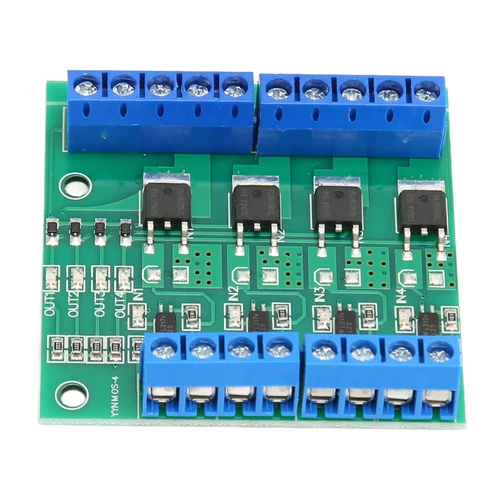

MOS Driver Module 4 Way Field Effect PLC Amplifier Board 3‑20V Input DC 3.7V‑27V Output

Item Type: MOS Driver Module
Material: PCB
Input Signal: PWM signal between 3-20V.
Output Capacity: DC 3.7V-27V, current within 10A for each channel.
PWM Frequency: 0-20KHZ
Indicator Light: With input signal and output indicator light.
Module Interface Description:
1. DC+: Positive pole of DC power supply of equipment.
2. DC-: negative pole of DC power supply of equipment.
3. PWM: Signal input terminal, which is connected to IO port of single chip microcomputer, PLC interface, DC power supply, etc.
4. GND: Signal negative terminal.
5. OUT+: Output terminal positive pole, which is connected to equipment positive terminal.
6. OUT-: Output terminal negative pole, which is connected to negative pole of equipment.

Features

1、Stable Signal: Adopting premium subminiature optocoupler with strong anti interference ability, stable in performance, and the input and output are completely isolated.
2、Input and Output: The input is PWM signal between 3‑20V, and the output is DC 3.7V‑27V, and the highly efficient work also has great reliability.
3、Wide Application: Can be widely applied to control high power equipment, motors, bulbs, LED light strips, DC motors, micro water pumps, solenoid valves, etc.
4、Simple Operation: Clear interface will largely simplify the wiring, while the input signal and output indicator lights will better display the working status.
5、Easy to Install: Comes with a light weight and a compact size as well, the convenient installation can be quickly completed within several minutes.

Package List

1 x MOS Driver Module
