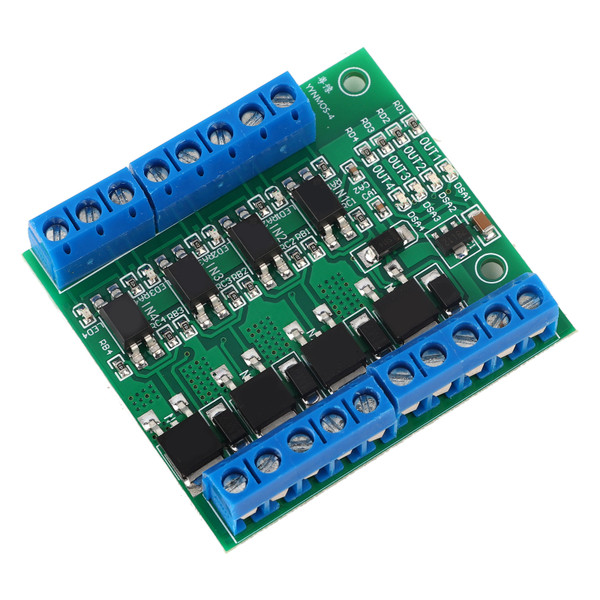

Product Overview
Features:
1. Using high quality ultra-small optocoupler, with strong anti-interference ability and stable performance.
2. The input signal and output signal is completely isolated.
3. With input/outpt signal indicator.
4. Onboard screw terminal block for quick wiring.
5. The output can control high-power equipment, bulb, LED strip, DC motor, micro pump, solenoid valve, etc.
Specification:
Model: YYNMOS-4
Input signal: 3~20V PWM signal
PWM frequency: 0~1kHz
Output capacity: DC 3.7V~27V, current of each channel ≤ 10A
Weight: 27g (approx.)
Wiring terminal description:
1. DC+: DC power supply positive
2. DC-: DC power supply negative
3. PWM: Signal input terminal (connected to the single-chip IO port, PLC interface, DC power supply, etc.)
4. GND: Signal negative terminal
5. OUT+: Output positive terminal (connected to the device positive)
6. OUT-: Output negative terminal (connected to the device negative)
Package list:
1 * PLC Amplifier Circuit Board
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
1. Using high quality ultra-small optocoupler, with strong anti-interference ability and stable performance.
2. The input signal and output signal is completely isolated.
3. With input/outpt signal indicator.
4. Onboard screw terminal block for quick wiring.
5. The output can control high-power equipment, bulb, LED strip, DC motor, micro pump, solenoid valve, etc.
Specification:
Model: YYNMOS-4
Input signal: 3~20V PWM signal
PWM frequency: 0~1kHz
Output capacity: DC 3.7V~27V, current of each channel ≤ 10A
Weight: 27g (approx.)
Wiring terminal description:
1. DC+: DC power supply positive
2. DC-: DC power supply negative
3. PWM: Signal input terminal (connected to the single-chip IO port, PLC interface, DC power supply, etc.)
4. GND: Signal negative terminal
5. OUT+: Output positive terminal (connected to the device positive)
6. OUT-: Output negative terminal (connected to the device negative)
Package list:
1 * PLC Amplifier Circuit Board
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Features
1、1. Using high quality ultra-small optocoupler, with strong anti-interference ability and stable performance.
2、2. The input signal and output signal is completely isolated.
3、3. With input/outpt signal indicator.
4、4. Onboard screw terminal block for quick wiring.
5、5. The output can control high-power equipment, bulb, LED strip, DC motor, micro pump, solenoid valve, etc.
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.34 Inch |
| Height | 0.78 Inch |
| Length | 2.34 Inch |
