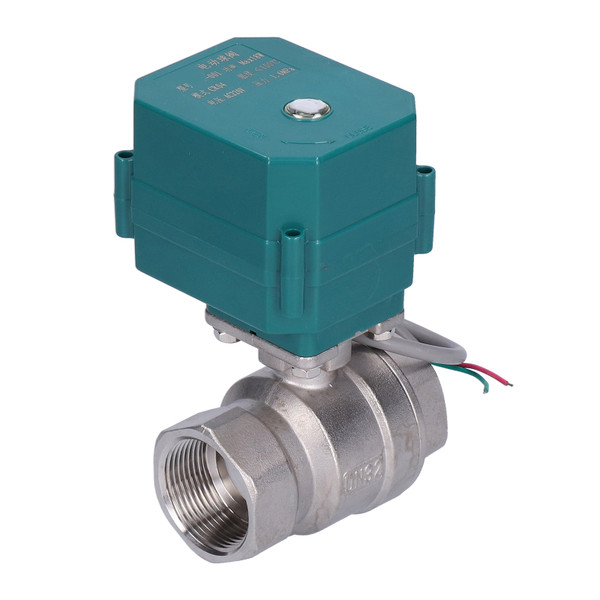

Motorized Ball Valve Stainless Steel 2 Way Auto Return Setup Pipe Pressure Fitting DN32 AC220V

Item Type: Motorized Ball Valve
Model: CTF001-CR04-AC220V-DN32
Adaptation Caliber: DN32
Medium Temperature: ≤100℃
Working Pressure: Maximum 1.6Mpa
Protection Level: IP65
Connection Method: CR04
Use: Water treatment miniature electric ball valve
Flow Direction: Straight flow
Thread Standard: BSP

Features

1、The motorized ball valve is 2‑wire power‑off reset mode, which automatically cuts off the power when it is fully opened or fully closed.
2、Working within the effective voltage range, the valve will be opened or closed within 3‑5 seconds.
3、After the valve is fully opened, the limit switch can reduce the power to a minimum and reduce heat generation.
4、With standard DN32 caliber, the connection is firm, suitable for projects that need to open the valve for a long time.
5、Made of stainless steel, rust‑proof and wear‑resistant, can be used in harsh weather environments.

Package List

1 x Motorized Ball Valve

1 x English User Manual
