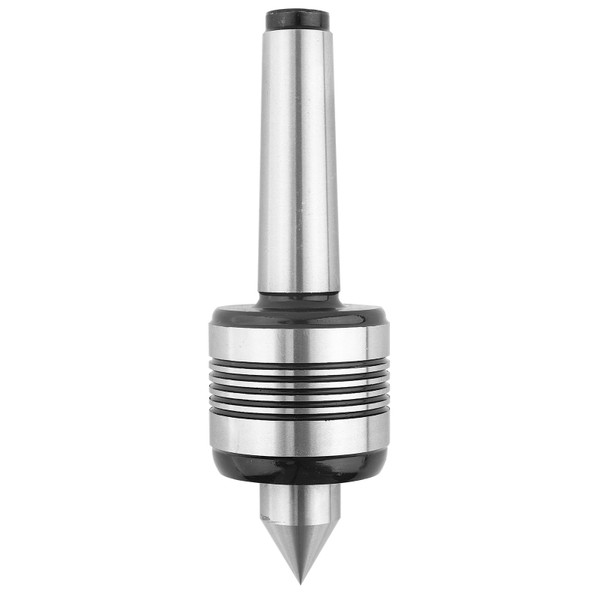

Product Overview
Features:
Specification:
Shank size: MT3
Maximum RPM: 3,000
Accuracy: 0.005mm
Load capacity: 660 LBS
Center point: 60 degrees
Length: 172mm / 6.8in
Outer diameter: 52mm / 2in
Package list:
1 x Live Center
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Specification:
Shank size: MT3
Maximum RPM: 3,000
Accuracy: 0.005mm
Load capacity: 660 LBS
Center point: 60 degrees
Length: 172mm / 6.8in
Outer diameter: 52mm / 2in
Package list:
1 x Live Center
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Features
1、It is designed for medium size and medium speed lathes.
2、Enlarged apex head for good working performance
3、High quality bearing design, using triple ball bearing for high accuracy.
4、The shaft is made of alloy steel Rc 60-62 after heat treatment,with high hardness, durable in use
5、Features excellent dustproof and liquid proof seal, long service life.
Package Weight and Dimension
| Weight | 2.29 lb |
| Width | 3.12 Inch |
| Height | 3.12 Inch |
| Length | 7.41 Inch |
