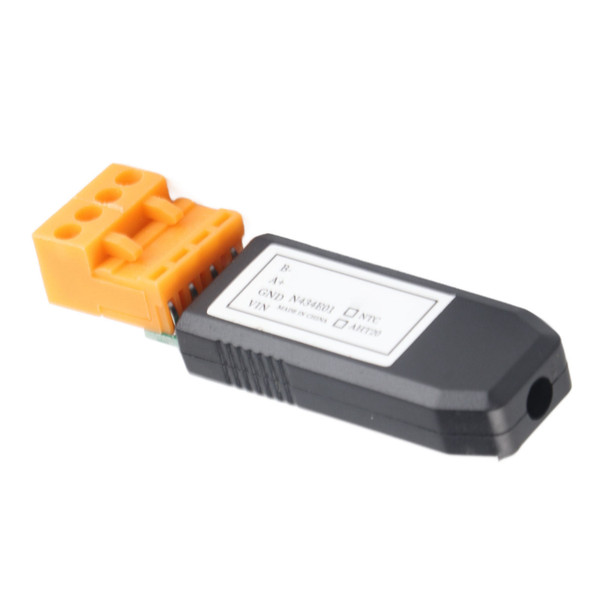

PLC Temperature Sensor for RTU RS485 Transmitter Room Monitoring 4‑7MA DC4.5~15V

Item Type: PLC Temperature Sensor
Operating Voltage: DC4.5~15V
Working Current: 4-7mA
Communication Protocol: For RTU protocol, 03, 04 read instruction, 06, 16 write instruction
Serial Port Baud Rate: 9600(default), no parity, 8 data bits, 1 stop bit
Device Address: Default value is 0x01. By modifying the 485 address, a maximum of 247 modules can be cascaded. If more than 16 modules are cascaded, use an RS485 repeater
Function: You can read the temperature of module
Sensor Specifications:
Product Name: Single bus temperature sensor chip
Temperature Measurement Range: -55℃~+125℃
Temperature Accuracy: ±0 within 10℃~85℃

Features

1、EFFECTIVE CONTROL: PLC temperature sensor can accurately control and feedback by reading the temperature value of module
2、COLLECTION METHOD: RS485 temperature transmitter supports for RTU protocol, which can be used for control collection through RS485 communication
3、WIDELY APPLICABLE: PLC temperature sensor can be used in the following working systems: PLC control systems, NTC thermistor sensors, thermostatic controllers, industrial systems, touch panels, thermometers, heat sensitive systems, indoor and outdoor temperature measurement, vegetable garden temperature, weather forecasting and monitoring, computer room temperature, warehouse temperature
4、WITH LED LIGHT: Temperature transmitter with LED indicator light, flashing when power on and effective communication, and off at other times
5、HIGH ACCURACY: Temperature measurement range from -55℃~+125℃, temperature accuracy is ±0 within 10℃~85℃

Package List

1 x PLC Temperature Sensor
