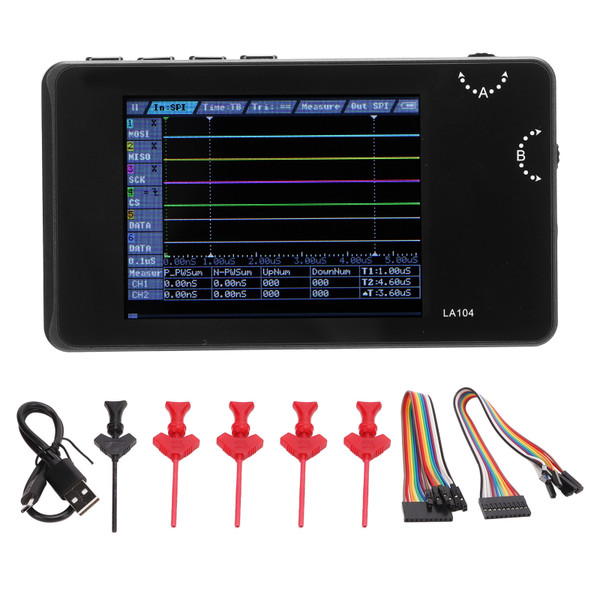

Portable Logic Analyzer 4 Channel Programmable Handheld Logic Analyzer Device with 2.8in TFT Display Screen

Item Type: Portable Logic Analyzer
Material: ABS, aluminum alloy
Input Channel Number: 4 channels
Sampling Rate: 100Msa/s
Minimum Captures Pulse Width: 10ns
Input Impedance: 1mΩ
Output Channel Number: 4 channels
Modes: SPI, I2C, PWM, UART
3V Output Channel: 1
Storage: 8MB USB flash memory
Screen Size: 2.8in TFT LCD
Screen Resolution: 320x240
Battery: 902030 500mAh Li ion battery (built in)
Display: 2.8in color LCD display screen

Features

1、Compact Design: The analyzer features a 2.8in TFT display screen and side thumbwheel, which is easy to operate and navigate
2、8MB Flash Memory: The analyzer has built in 8MB flash memory, which is easy to save images and transfer data
3、Portable: The analyzer is small in size, which fits easily into any pocket, so you can take around with you anytime and anywhere
4、High Strength: The analyzer is made of ABS and aluminum alloy material, has high strength, not easy to damage, strong and durable
5、Wide Range of Application: The analyzer can be used for UART I2C SPI and many other acceptable standard protocols

Package List

1 x Portable Logic Analyzer

5 x Test Hook

2 x Jump Wire

1 x Charging Cable

1 x Instructions for Use

1 x User Manual
