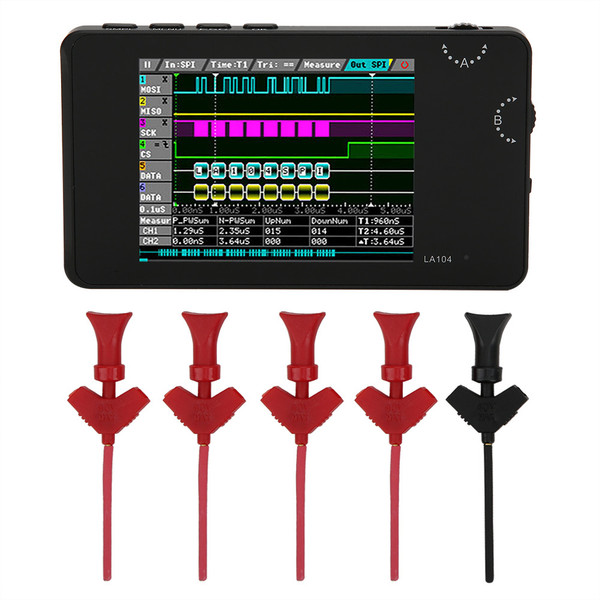

Portable Digital Logic Analyzer 2.8in TFT LCD Display 4 Channels for Automotive Electronics

Item Type: Logic Analyzer
Applicable Power Adapter Type: 5V 500mA
Number Of Input Channels: 4 Channels
Sampling Rate: 100MHz
Minimum Capture Pulse Width: 10ns
Input Impedance: 1mΩ
Number of Output Channels: 4 Channels
Mode: SPI, I2C, PWM
3v Output Channel: 1
Storage: 8mb USB Flash Memory
Screen Size: 2.8-Inch TFT LCD
Screen Resolution: 320 x 240
Battery Capacity: 500 Mah
Host Size: Approx. 100 x 56 x 8.6mm / 3.9 x 2.2 x 0.3in
Weight: 83 g / 2.9 oz(approx.)
Certificate: CE, FCC

Features

1、Logic analyzer is an instrument that analyzes the logical relationship of digital systems
2、Can collect and store multiple digital signals, and visually display the timing relationship of these signals on the screen
3、With protocol analysis function, the logical signals of the physical layer of the protocol can be parsed into high-level protocol data and displayed
4、2.8-inch TFT LCD screen makes data reading faster and easier
5、Compact and lightweight, easy to use and carry
6、Can be widely used in automotive electronics, communications, power, computers and other industries and fields

Package List

1 x Logic Analyzer
