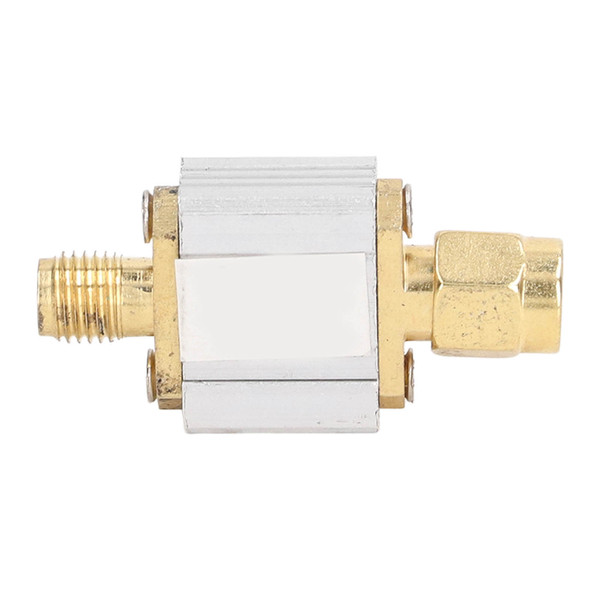

Receiver Filter 915MHz Wide Compatibility Saw Bandpass Filter with SMA Interface for Miners

Item Type: Receiver Filter
Material: PCB
Impedance: 50ohms
Center Frequency: 915MHz
1dB Passband: 902-928MHz
In band Insertion Loss: ≤2.0dB
Maximum Carrying Power: 100mW (20dBm)
Interface: SMA M, SMA F

Features

1、26MHz Bandwidth: The bandwidth of the receiver filter is 26MHz, which matches the antenna frequency to that of the wireless device and provides signal identification capabilities
2、915MHz Center Frequency: The center frequency of this receiver filter is 915MHz, suitable for all 915mhz miners and antennas
3、Effective Filtering: This receiver filter can effectively filter out out of band signals, reduce noise, and increase dynamic range
4、Stable Structure: This RF bandpass filter has stable structure, excellent performance and long service life
5、Wide Compatibility: This filter is designed for long range radio internet of things applications, compatible with all helium miners on the market, such as for Nebra HNT indoor and outdoor hotspot miner, for RAK V2 hotspot miner, etc.

Package List

1 x Receiver Filter
