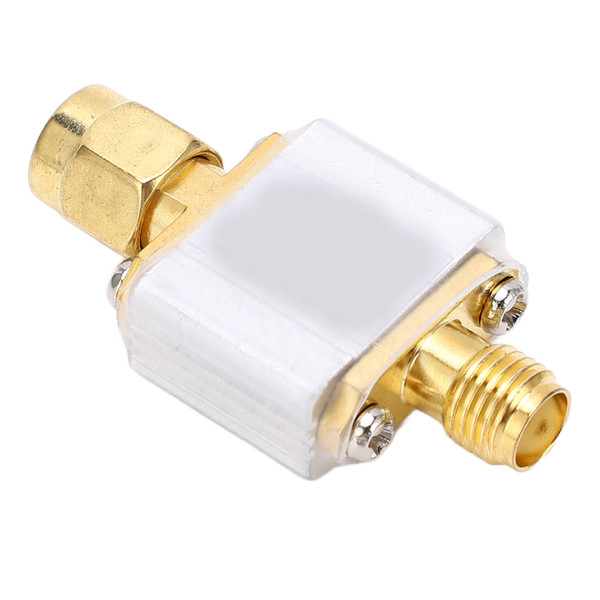

SAW Bandpass Filter 2017MHz 1DB Stable Bandpass Filter Module with SMA Interface for Communication

Item Type: SAW Bandpass Filter
Material: Aluminum alloy
Impedance: 50 Ohms
Frequency Center: 2017.5 MHz
Passband (1 dB bandwidth): 2005 to 2030 MHz
Intraband Insertion Loss: 1.5 to 2.0 dB (typical: -1.7 dB)
Maximum Load Power: 100 mW (20 dBm)
Interface: SMA-M, SMA-F (RF characteristics of non directional, both ends can be input or output)

Features

1、Bandpass Filter: This filter has a 1dB bandwidth of about 25MHz, with steep cutoff characteristics and stable performance, and is designed for communication systems.
2、2017MHz Center Frequency: The center frequency of this receiver filter is 2017MHz, suitable for all 2017mhz miners and antennas.
3、Aluminum Alloy Housing: This filter uses aluminum alloy shielding shell, anti interference, no out of band spurious response, compact and sturdy, easy to use.
4、Stable Performance: Filters for signal testing of communication systems in the 2005‑2030 MHz frequency range, effectively filtering out of band signals, reducing noise, and increasing dynamic range.
5、Easy to Use and Carry: The receiver band pass filter is small in size, sturdy, easy to use and convenient to carry.

Package List

1 x SAW Bandpass Filter
