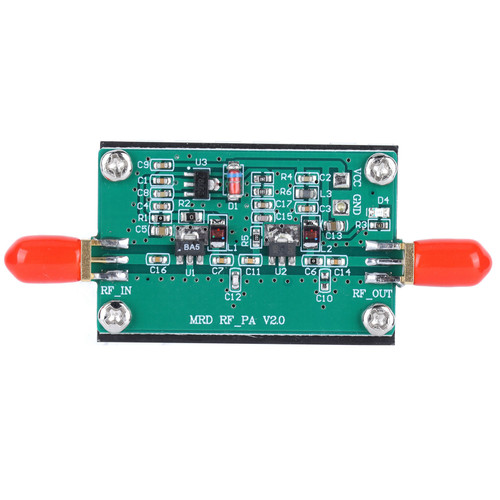

Product Overview
Item Type: RF Amplifier
Material: Printed Circuit Board
Power Supply Voltage: DC 11-15V (the board has 2 voltage regulator chips)
Frequency Range: 20-1500MHz
Amplification Gain: 28dB
Noise Figure: 3.5dB
Maximum Power: 0.5W (26.5dBm)
Connector Model: SMA female (male thread inner hole).
Size: Approx. 50 x 50mm / 2 x 2in (40 x 40mm / 1.6 x 1.6in positioning hole spacing).
Function: Used in various radio frequency receiving front ends to increase communication distance.
Applicable Scenarios: For wide shortwave, FM broadcasting, remote control receiver.
Material: Printed Circuit Board
Power Supply Voltage: DC 11-15V (the board has 2 voltage regulator chips)
Frequency Range: 20-1500MHz
Amplification Gain: 28dB
Noise Figure: 3.5dB
Maximum Power: 0.5W (26.5dBm)
Connector Model: SMA female (male thread inner hole).
Size: Approx. 50 x 50mm / 2 x 2in (40 x 40mm / 1.6 x 1.6in positioning hole spacing).
Function: Used in various radio frequency receiving front ends to increase communication distance.
Applicable Scenarios: For wide shortwave, FM broadcasting, remote control receiver.
Features
1、RF Amplifier: This RF amplifier module has wide range, high gain and low noise, all ensure stable signal receiving.
2、Wide Frequency Range: Work with great stability and high efficiency, the frequency range is from 20 to 1500MHz.
3、HIGH EFFICIENCY: Has high linearity, high dynamic range, 28dB amplification gain and 3.5dB noise figure as well.
4、PRACTICAL USE: Widely used in various radio frequency receiving front ends to increase communication distance.
5、GOOD MATERIAL: Adopting premium Printed Circuit Board, not easy to break, and very durable for long term use.
Package List
1 x RF Amplifier
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 1.95 Inch |
| Height | 0.39 Inch |
| Length | 3.12 Inch |
