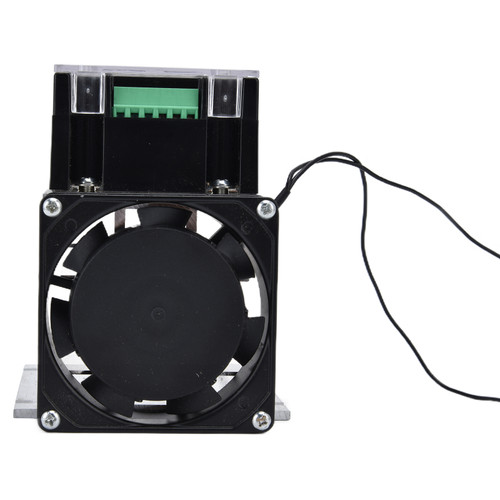

Product Overview
Input Parameters:
External Power Supply: No need
Manual Control: 10K potentiometer
Analog Quantity Control: 4-20mA, 0-5V, 0-10V
LED Display: Yes
Output Parameters:
Minimum Conduction Current: Greater than 50mA
Off State Leakage Current: Less than 10mA
Frequency Range: 45-65Hz
Turn On Time: 10ms
Turn Off Time: 10ms
Working Environment Temperature: -35℃~75℃
Features
1、Integrate in One: Integrates single phase electrical phase detection, phase shifting circuit, trigger circuit and one way anti parallel one way thyristor in one, no need for external synchronization transformer
2、Stepless Adjustment: 0‑5VDC, 0‑10VDC, 4‑20mA signal automatic or manual control, realize stepless adjustment of single phase load voltage from 0V to full voltage of grid by changing conduction angle of thyristor
3、Photoelectric Isolation: Support input and output photoelectric isolation, small size, light weight, and long life. Large control power, stepless regulation, high insulation voltage, etc.
4、Automatic or Manual Control: Simple to use the change of the input voltage to realize automatic control of load power at output, and can also use the external potentiometer(10K) to manually adjust the output power
5、Wide Applicable: Widely suitable for industrial electric furnaces, electric ovens, lighting, primary side voltage regulation of transformer and other equipment for temperature, light, voltage regulation and other controls
Package List
1 x Voltage Regulator
1 x Protective Cover
Package Weight and Dimension
| Weight | 1.38 lb |
| Width | 3.12 Inch |
| Height | 2.34 Inch |
| Length | 4.68 Inch |
