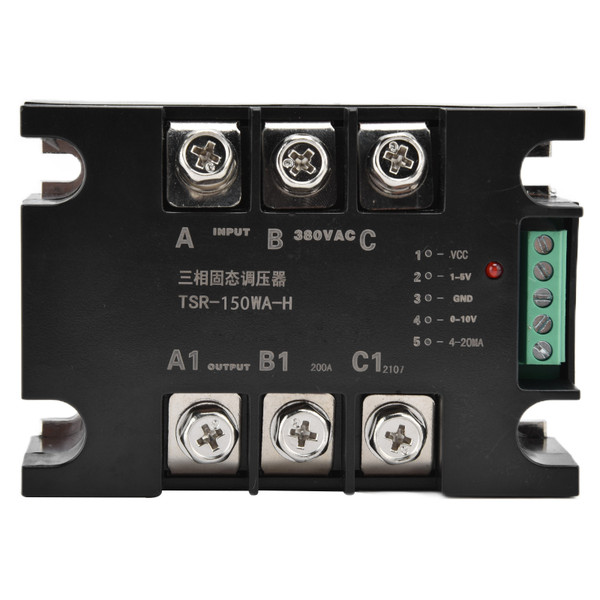

SCR Voltage Regulator 3 Phase Solid State Electrical Regulation Transformer Relay 380VAC(TSR-150WA-H Without Heat Sink)

Item Type: SCR Voltage Regulator
Input Parameters:
External Power Supply: No need
Manual Control: 10K potentiometer
Analog Quantity Control: 4-20mA, 0-5V, 0-10V
LED Display: Yes
Output Parameters:
Minimum Conduction Current: Greater than 50mA
Off State Leakage Current: Less than 10mA
Frequency Range: 45-65Hz
Turn On Time: 10ms
Turn Off Time: 10ms
Working Environment Temperature: -35℃~75℃

Features

1、Integrate in One: Integrates 3 phase electrical phase detection, phase shifting circuit, trigger circuit and 3 set anti parallel one way thyristor in one, without external synchronization transformer
2、Stepless Adjustment: 0‑5VDC, 0‑10VDC, 4‑20mA signal automatic or manual control, finish stepless adjustment of 3 phase load voltage from 0V to full voltage of grid by changing conduction angle of thyristor
3、Photoelectric Isolation: Possess input and output photoelectric isolation, large control power, stepless regulation, high insulation voltage, etc. Small size, light weight with long life
4、Automatic or Manual Control: Simple to use the change of the input voltage to realize automatic control of load power at output, and can also use the external potentiometer(10K) to manually adjust the output power
5、Wide Applicable: Can be used in industrial electric furnaces, electric ovens, lighting, primary side voltage regulation of transformer and other equipment for temperature, light, voltage regulation and other controls

Package List

1 x Voltage Regulator

1 x Protective Cover
