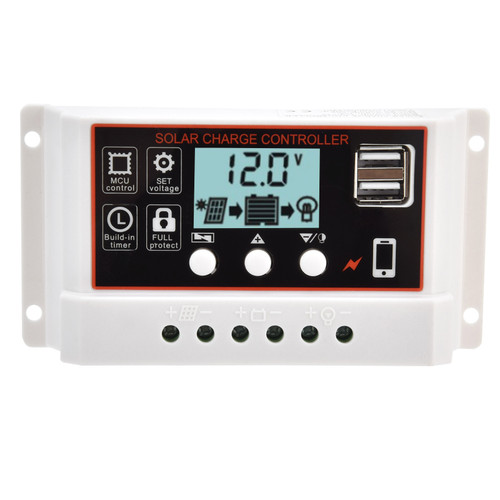

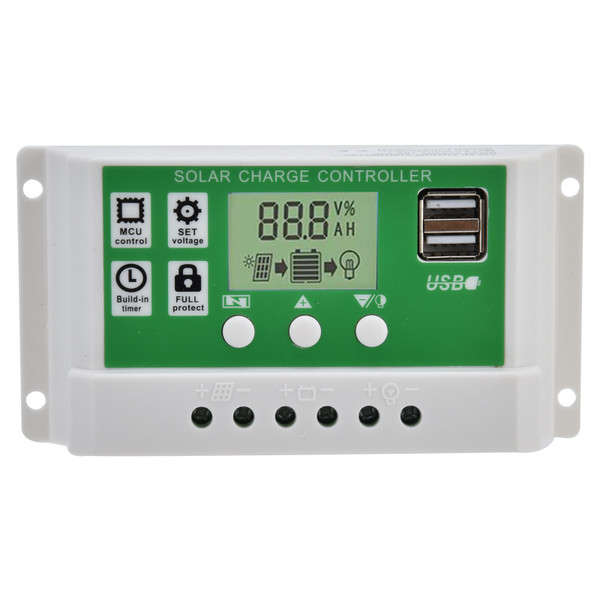

Smart Charge Controller Dual USB Solar Charging Panel PWM Control Equipment 12/24V GLL121030A

Item Type: Smart Charge Controller
Material: ABS
Model: GLL1210
Uses: Suitable for home, industry, commerce, etc.
Rated Voltage: 12/24V
Maximum Photovoltaic Voltage: 50V
10A Solar Panel Power: 130W (12V) 260W (24V)
20A Solar Panel Power: 260W (12V) 520W (24V)
30A Solar Panel Power: 390W (12V) 780W (24V)
USB Output: 2 USB outputs, 5V/2.5A (maximum)

Features

1、The solar controller has the functions of short circuit protection, open circuit protection, reverse protection, overload protection, etc.
2、3‑stage PWM charging management, effectively improving system efficiency and extending battery life.
3、Once the battery voltage drops below 8V, the solar controller will automatically shut down to protect the battery.
4、Equipped with an LCD display, which can clearly display status and data, and easily switch modes and parameter settings.
5、The charge controller should be connected to the battery first, then to the solar panel, and finally to the load.

Package List

1 x Smart Charge Controller

1 x User Manual
