Product Overview
Rated Frequency: 50Hz/60Hz
Number of Pole: 2P
Breaking Capacity: Level 2
Protection Level: IP20
Installation Category: Ⅱ, Ⅲ
Working Temperature Range: -25℃ to +65℃
Instantaneous Tripping Type: C Type D Type (Special Instructions)
Rated Short Circuit Breaking Capacity: 3kA
Mechanical Life: Over 10000 times
Electrical Life: Over 6000 times
EMC Performance: Compliant with GB/T 18449
Salt Spray Resistance: Compliant with GB/T 2423.17 48 hours
Dustproof: Compliant with GB 4208 8h
Features

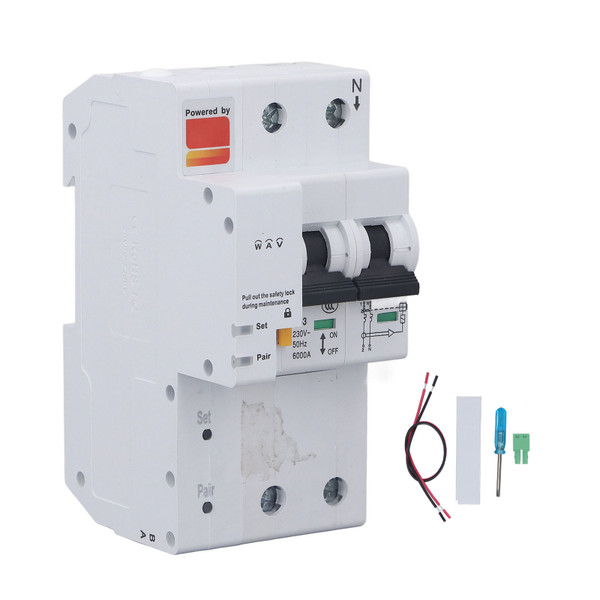

1、Smart WiFi Circuit Breaker: This circuit breaker can control and monitor your electricity usage from anywhere through your smart phone or voice commands.
2、Remote Control Power Monitoring: Easily turn your circuit breaker on or off remotely and track your power consumption in real time, greatly improve work efficiency.
3、Historical Data Saving: Supports power consumption history data (accurate to hours), can be saved for up to 6 months, can be exported to Excel on the phone.
4、Overload Protection: You can set power, current, and voltage thresholds, and once any conditions are met, the circuit breaker will close to protect your device.
5、Multiple Functions: This WiFi circuit breaker supports APP control, voice control, local area network control, timing scheduling, jog setting, power on status, etc.
Package List
1 x Circuit Breaker
1 x Screwdriver
1 x Terminal
1 x Wire
1 x Accessory
1 x User Manual
Package Weight and Dimension
| Weight | 1.05 lb |
| Width | 3.51 Inch |
| Height | 3.12 Inch |
| Length | 5.85 Inch |
