Solar Disconnect Switch Mini Circuit Breaker with IP65 Waterproof Distribution Box PV Disconnector DC500V 16A

Item Type: Disconnect Switch
Material: Polycarbonate, ABS
Input: 1 String
Output: 1 String
Maximum Voltage: 500V
Protection Level: IP65
Cable Input Port: 4mm²
Output Cable Gland: 4mm²
DC Circuit Breaker:
Rated Insulation Voltage (Ui): 500V
Maximum Working Voltage (Ucpv): 500V
Rated Working Voltage: 500V

Features

1、MAIN PURPOSE: 500V solar photovoltaic DC disconnect switch combiner box, installed between solar panels and solar inverters, plug and play.
2、CIRCUIT PROTECTION: With overvoltage, overload, and thunder protection function, capable of long distance comm, and has a long service life.
3、HIGH RELIABILITY: Equipped with reliable DC components to protect the PV disconnect switch, transparent cover for easy checking of the breaker status.
4、IP65 WATERPROOF: This combiner box has an IP65 waterproof grade, allowing for indoor and outdoor installation, can be used in harsh weather environments.
5、WIDE APPLICATION: This photovoltaic disconnect switch is suitable for photovoltaic solar panel on and off grid systems, solar power generation systems, RVs, etc.

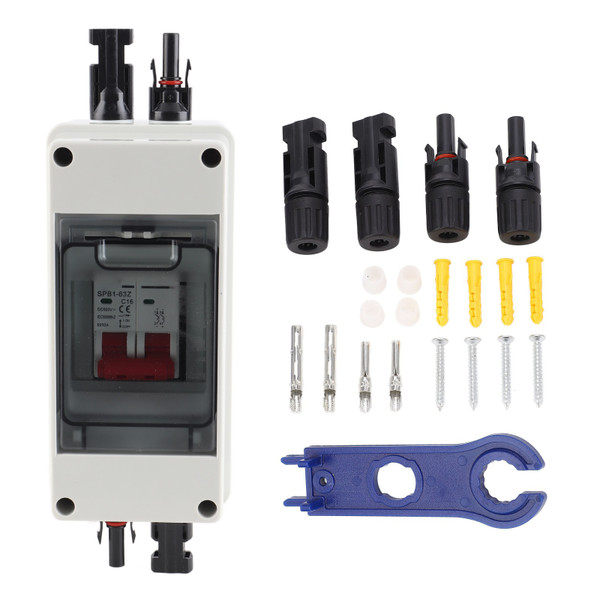

Package List

1 x Disconnect Switch

4 x Connectors  (2 x Male, 2 x Female)

4 x Cores

4 x Screws

4 x Expansion Tubes

1 x PV Special Wrench

4 x Plugs

1 x User Manual
