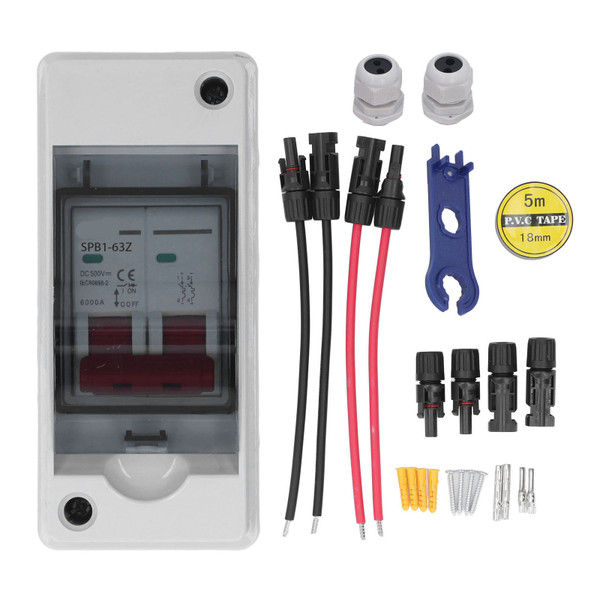

Solar PV Disconnect Switch with IP65 Waterproof Distribution Box Mini Circuit Breaker Combiner Box DC500V 20A

Item Type: DC Disconnect Switch
Material: Polycarbonate, ABS
Input: 1 String
Output: 1 String
Maximum Voltage: 500V
Protection Level: IP65
Cable Input Port: 4mm²
Output Cable Gland: 4mm²
DC Circuit Breaker:
Rated Insulation Voltage (Ui): 500V
Maximum Working Voltage (Ucpv): 500V
Rated Working Voltage: 500V

Features

1、MAIN PURPOSE: 500V solar photovoltaic DC combiner box, installed between the solar panel and the solar inverter, with 1 string input and output.
2、APPLICABLE CABLE: This DC disconnect switch supports plug and play, suitable for cables with a diameter of 4-6mm, 13-10 AWG cables, and 4-6mm² cables.
3、GOOD PROTECTION: With overvoltage, overload, and thunder protection function, capable of long distance comm and extending the working life of solar system.
4、EXCELLENT PARTS: Equipped with reliable DC components for maximum protection of PV DC disconnect switch, transparent cover for easy detection of circuit breaker status.
5、IP65 WATERPROOF: The distribution box has an IP65 waterproof grade, allowing for indoor and outdoor installation, providing effective protection in harsh environments.
6、WIDE APPLICATION: Suitable for photovoltaic solar panel grid connected system, solar off grid system, solar power generation system, photovoltaic array, etc.
