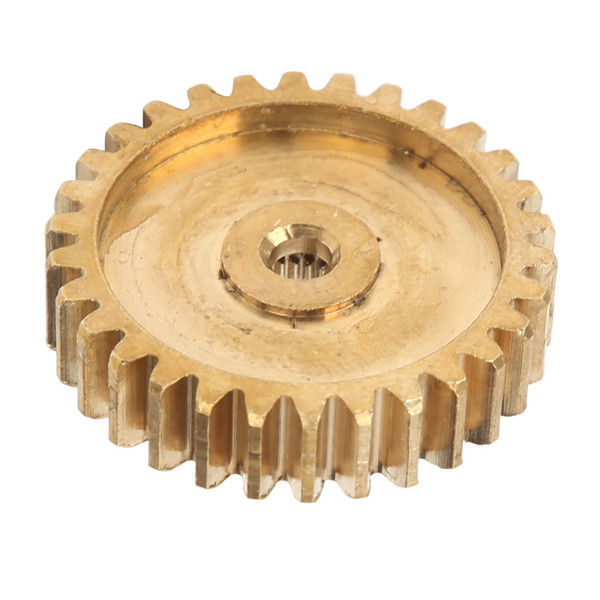

Spur Gear Brass 30 Tooth for Servo 25 Tooth Spline 0.8 Mod Industrial Robot Part 4305‑0025‑0030

Item Type: Spur Gear
Material: Brass
Model: 4305-0025-0030
Mod: 0.8
Pitch Diameter: Approx. 24mm / 0.9in
Outer Diameter: Approx. 25.6mm / 1in
Diameter: Approx. 3mm / 0.1in
Size: Approx. 6mm / 0.2in

Features

1、Transfer the torsion of your servo into a gear train using these MOD 0.8 servo gears
2、This 30 tooth servo gear is most commonly used to drive the 90 tooth hub gear, spaced 48mm away, in order to create a 3:1 ratio
3、This gear is also can be used to drive the 30 tooth small gear, spaced 24mm away, with a 1:1 ratio
4、Using good‑quality brass material with excellent ductility and corrosion resistance
5、Spur gear possess stable structure, excellent performance and long service life

Package List

1 x Spur Gear
