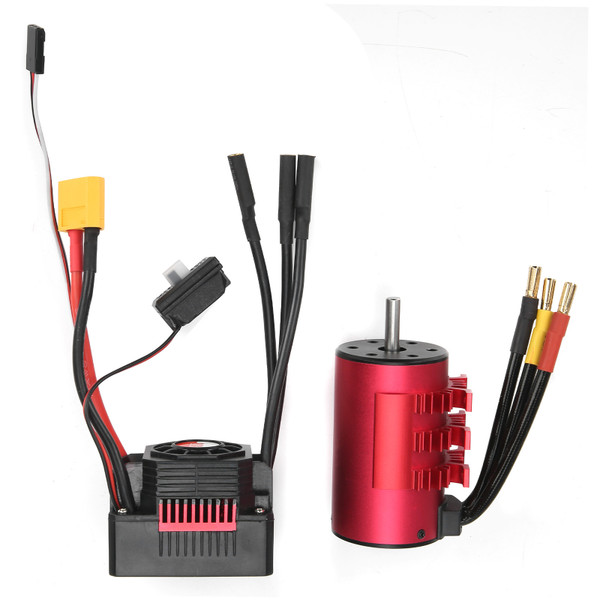

SURPASSHOBBY 3660 Waterproof Brushless Motor 3100KV+80A Waterproof ESC+Heat Sink Set

Item Type: Motor Set for RC Car
Material: Plastic + Metal + Electronic Components
Color: Black Red
Weight: Approx. 383.0g/13.5oz
3660 Motor:
KV (rpm/volt): 3100KV
Wattage: 1200
Maximum rpm: 50000
Maximum Ampere: 80A
Number of Rotor Poles: 4
Diameter: Approx. 36mm/1.4in
Length: Approx. 60mm/2.4in
Shaft Size: Approx. 5mm/0.20in
Shaft length: Approx. 17mm/0.7in
Connector: Approx. 4.0mm/0.16in
80A ESC:
Continuous Current: 80A
Maximum Current: 480A
Applicable Motor Type: Sensorless and Brushless Motor
For lipo 2s or 6 nimh cells:
1. Highway: 3670 or smaller engine with kv <6000kv
2. Off-road/off-road vehicle/monster: 3670 size or smaller engine with kv <4000kv
For lipo 3s or 9 nimh cells:
1. Highway: 3670 size or smaller engine with kv<4000kv.
2. Off-road/off-road vehicle/monster: 3656 size or smaller engine with kv <3000kv

Features

1、It adopts 4‑level 12‑slot high‑torque motor design, which can realize maximum power conversion.
2、CNC machined steel billet, 6061‑T6 aluminum heat sink, secondary oxidation treatment, high‑end and fine appearance.
3、High‑speed ABEC5 ultra‑durable sealed bearings, low friction, low noise, high precise, and long‑lasting use.
4、4.0mm/0.16in gold‑plated connector, 5mm/0.20in output shaft, suitable for 1/10 RC cars, using M3 screws, installation hole distance 25mm/0.98in.
5、High‑balanced explosion‑proof rotor, high smoothness, high precise and high speed, dynamic balanced control within 10mg, which can be removed and replaced later.
6、Ultra‑thin silicon steel sheet, excellent performance, high magnetic permeability, high silicon content, good insulation and heat resistance.
7、The motor adopts precise waterproof design, maximum power conversion, high‑purity copper coil, maximum efficiency, temperature resistance 180‑200°.
8、Multiple protection functions, battery low‑voltage cut‑off protection, overheating signal loss protection, motor stall protection.
9、Powerful current resistance, excellent heat dissipation, easy to program and compatible with pocket programming cards.

Package List

1 x Brushless Motor

1 x 80A ESC

1 x Heat Sink

2 x Manual
