SW-6310A Digital Coating Thickness Gauge Car Thickness Tester Measuring Tool

Features:
1. Support live voice broadcast, you do not need to distract data
2. Measurement data can generate histograms for easy analysis of coating changes
3. With 8 independent group modes, each group can store 32 pieces of data, each group can view data separately and generate histogram analysis
4. 2in high-definition color screen for easy reading
5. Can test non-magnetic covering magnetic substrate, non-conductive covering non-magnetic metal substrate, such as car paint, rubber, paint and enamel

Specification:
Condition: 100% Brand New
Model: SW-6310A
Type
SW-6310A
Measuring Range
0-1700um
Resolution
0.1um@(0-99.9um)        1um@(100-1700um)
Display error
+/-(2+2%*H)um@(0-500um)  +/-(2.5%*H)um@(500-1700um)
Min Measurement Area
25x25mm
Min Curvature
Convex Surface 5mm,Concave Surface 30mm
Min Substrate Tthickness
Magnetic 0.2mm,Non-magnetic 0.05mm
Display Screen
2.0 inch segment code screen
Data Storage
30 times
Data Output
N/A
Power Supply
2x1.5A AAA Battery(not included)
Voice Broadcast
N/A
Histogram Data Analysis
N/A
Weight: Approx. 480g / 16.9oz

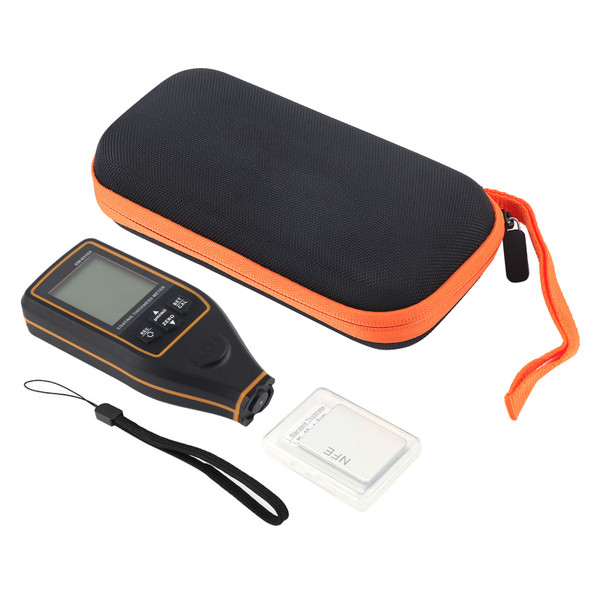

Package List:
1 * Car Painting Thickness Gauge
1 * Handbag
1 * Hand Rope
1 Box of Calibration Block
1 * User Manual
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.

Features

1、Support live voice broadcast, you do not need to distract data
2、Measurement data can generate histograms for easy analysis of coating changes
3、With 8 independent group modes, each group can store 32 pieces of data, each group can view data separately and generate histogram analysis
4、2in high-definition color screen for easy reading
5、Can test non-magnetic covering magnetic substrate, non-conductive covering non-magnetic metal substrate, such as car paint, rubber, paint and enamel
