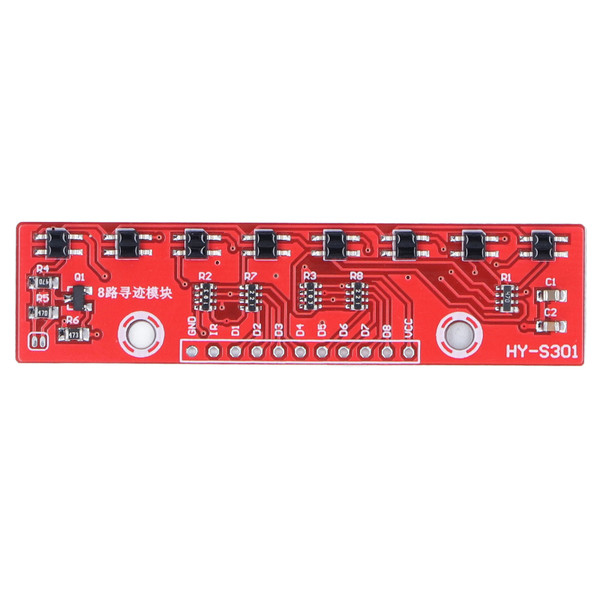

Tracking Module 8 Channel Infrared Detection Sensor PCB 8bit Detector Hunt Board

Features

1、INFRARED DETECTION: 8 channel IR detector hunting module with eight tracking module IR detection sensors, simple and easy to use
2、8 SENSORS IN TOTAL: D1-D8 mark on the module correspond to 8 sensors from left to right, clear and easy to read
3、ANALOG OUTPUT: D1-D8 output mode is analog, normal high level after power on, possess stable connecting performance
4、1V VOLTAGE VALUE CHANGE RANGE: Use obstacles to cover the sensor, according to the distance of the obstacle, the voltage value of D1-D8 will decrease, and the range of change is within 1V
5、EXCELLENT PCB: Good quality PCB materials have reliability and miniaturization, good maintenance and interchangeability

Package List

1 x Tracking Module
