Product Overview
Material: ABS
Signal Output: Transmitter: 125KHz
Cable Depth Measurement: Receiver 0-2.5m (Wall, Underground Cable)
Operating Environment: Transmitter and Receiver: -10℃ to 50℃
Storage Temperature: Transmitter and Receiver: -20℃ to 60℃
Relative Humidity (Non Condensing): Transmitter and Receiver: Maximum 80%
Measurement Height: Transmitter and Receiver: Maximum 2000m
Transmitter Battery: 9V Alkaline Battery x 1 (Battery Not Included)
Receiver Battery: 1.5V AAA x 6 (Battery Not Included)
Features
1、[Non Destructive Cable Localization] Easily locate faults without the need for extensive digging, saving labor and preventing damage to wall or floor.
2、[Precise Positioning] The receiver sensitivity can be adjusted automatically or manually to meet different situations, ensuring precise location detection.
3、[Self Checking Function] The transmitter has a self check feature that checks the transmission status and displays it on the LCD screen for effective reference by users.
4、[Mute Operation] Both the transmitter and receiver have a mute function, allowing you to work in a quieter environment according to your preferences.
5、[Voltage Measurement] The transmitter features a built in DC AC voltage meter, enabling linear measurement of 12 to 400V DC AC voltage for added functionality and convenience.

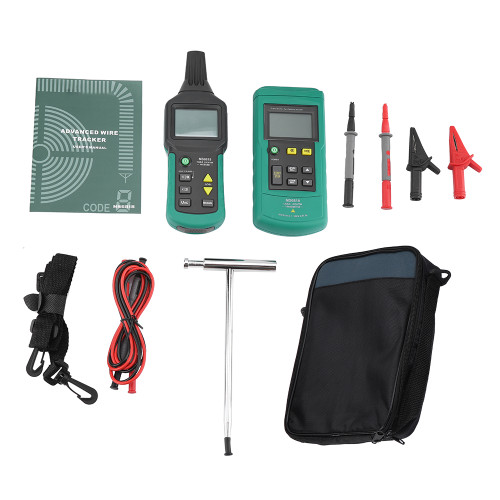

Package List
1 x Transmitter
1 x Receiver
1 x User Manual
2 x Crocodile Clips (Black, Red)
2 x Test Leads (Black, Red)
2 x Test Probes (Black, Red)
1 x Grounding Rod
1 x Cloth Bag
1 x Rope
Package Weight and Dimension
| Weight | 2.78 lb |
| Width | 7.8 Inch |
| Height | 3.51 Inch |
| Length | 10.92 Inch |
