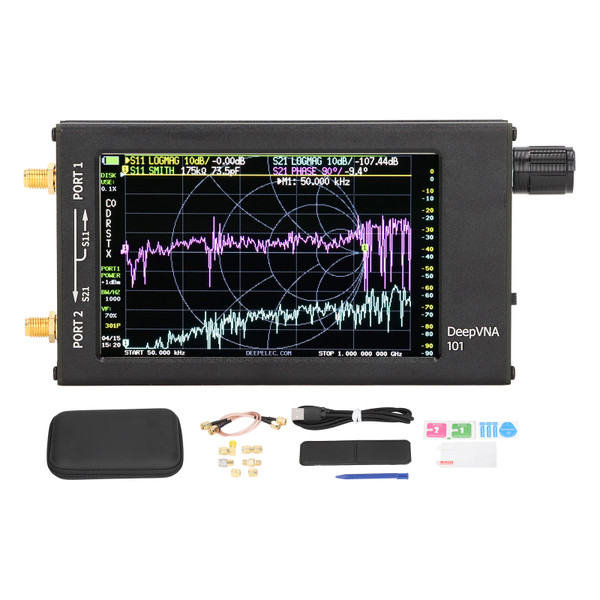

Vector Network Analyzer 4.3in Screen Handheld HF VHF UHF Antenna Standing Waves Analyzer 10k - 1.5ghz

Item Type: Vector Network Analyzer
Material: Aluminum alloy and ABS
Rated Frequency: 10k - 1.5ghz
Scan Points: Up to 301 points
Battery Capacity: 3.7v 5000mah Li ion battery (with built in battery)
Memory Size: 16mb
Up to about 1000 sets of snp file data can be saved

Features

1、Multi Parameter Measurement: Vector network analyzer can measure the S parameters of the circuit, transmission test, reflection test, insertion loss, return loss, fault location (TDR function), antenna standing wave, impedance, filter response and so on.
2、Excellent Processor: The vector network analyzer hardware is based on the for STM32F103 Cortex M3 processor and provides excellent measurement capabilities.
3、Large Display Screen: The vector network analyzer adopts a 4.3inch high resolution IPS display screen, and various data are displayed clearly.
4、Large Capacity Battery: The antenna upright wave analyzer has a built in 3.7v 5000mah lithium ion battery, which has a large battery capacity and long battery life.
5、Aluminum Alloy and ABS Material: Metal body, high quality aluminum alloy and ABS material, anti drop, wear resistant, long service life.

Package List

1 x 4.3inch Screen Unit

1 x USB A to USB Type C Cable

2 x 20CM SMA Male to Male RG316 RF Cable

1 x SMA Male Calibration Connector OPEN

1 x SMA Male Calibration Connector SHORT

1 x SMA Male Calibration Connector LOAD(within 4GHz, SWR< 1.025)

1 x SMA JJ Male to Male Connector

1 x SMA KK Female to Female Connector

1 x SMA JKW Male to Female Right Angle Connector

1 x Folding Base

1 x Resistive Screen Stylus

1 x Tempered Film and Film Tool

1 x Storage Box
