Vector Network Analyzer HF VHF UHF Shortwave Antenna Analyzer Kit 50kHz‑3GHz Built in Battery

Item Type: Vector Network Analyzer
Frequency Range: 50kHz-3GHz
System Dynamic Range (Calibrated): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
S11 Background Noise (Calibrated): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
Scanning Speed: 100 points/second
Display: 2.8in, 320 x 240
USB Interface: Micro USB
Power Supply: USB, maximum charging current 1A
Battery: Li ion battery 1950mAh (built in battery)
Maximum Scan Point (On Device Screen): 201
Maximum Scan Point (USB): 1024
Port 2 Return Loss (1.5GHz): 20dB Typical
Port 2 Return Loss (3GHz): 13dB Minimum
VNA-QT Software Compatible Systems: Planned for Linux, for Windows (7+), for iOS

Features

1、REASONABLE DESIGN: This vector network analyzer is licensed under the LGPL and is based on the design for OwOComm for measuring higher frequency.
2、UNIQUE USER INTERFACE: The initial calibration data is not loaded at startup, and the calibration data will not be automatically inserted after the user changes the frequency.
3、DATA CALIBRATION: Every time you start the network analyzer and change the frequency, you must calibrate the data again or recall the calibration data.
4、WIDE APPLICATION: The network analyzer has a frequency range of 50kHz-3GHz and a scan speed of 100 points/second, has a wide range of applications.
5、EASY OPERATION: The analyzer kit is suitable for shortwave HF VHF UHF antenna, equipped with USB data cable, easy to connect and good stability.

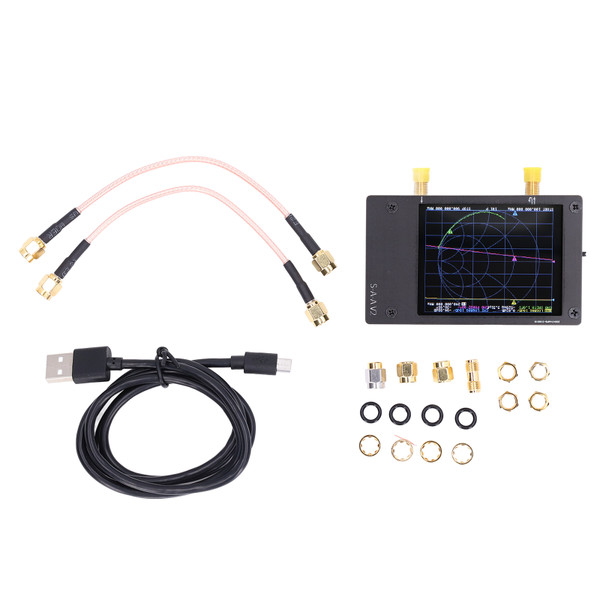

Package List

1 x Analyzer Host

1 x USB Data Cable

2 x SMA Male to Male RG316 RF Cable 15cm

1 x SMA Female to Female Connector

1 x SMA Simple Calibration Kit LOAD

1 x SMA Simple Calibration Kit SHORT

1 x SMA Simple Calibration Kit OPEN

1 Set DIY Accessories

1 x User Manua
