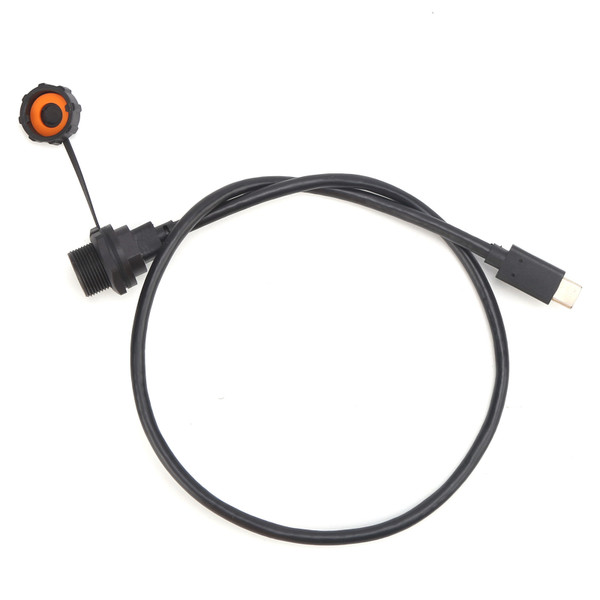

Product Overview
Item Type: Water Resistant Type C Connector
Product Model: E10TPC-TF-F/TPC-A-M
Thread Specifications: 5/8in-27UNS
Rated Voltage: 30V
Rated Current: 1.5A
Insulation Resistance: 2000mΩ
Applicable Temperature: -40℃~+105℃
Mating Times: ≥500 Times
Shell Material: Thermoplastic PA66
Flame Retardant Grade: V-0
Conductor Material: Brass
Cable Material: PVC jacket
Connection Method: Thread locking (T)
Water Resistant Rating: IP67
Application Scenarios: Widely used in some water resistant application scenarios such as mechanical equipment, outdoor equipment, lamps, IOT devices, etc.
Product Model: E10TPC-TF-F/TPC-A-M
Thread Specifications: 5/8in-27UNS
Rated Voltage: 30V
Rated Current: 1.5A
Insulation Resistance: 2000mΩ
Applicable Temperature: -40℃~+105℃
Mating Times: ≥500 Times
Shell Material: Thermoplastic PA66
Flame Retardant Grade: V-0
Conductor Material: Brass
Cable Material: PVC jacket
Connection Method: Thread locking (T)
Water Resistant Rating: IP67
Application Scenarios: Widely used in some water resistant application scenarios such as mechanical equipment, outdoor equipment, lamps, IOT devices, etc.
Features
1、Water resistant Type C connector come with water resistant grade of IP67, which can protect the connection
2、Rich in structure, support wired to wire, pre‑board installation, post‑board installation, PCB board type and various specifications with wire
3、Used in some water resistant application scenarios such as mechanical equipment, outdoor equipment, lamps, IOT equipment, etc.
4、Support more than 500 mating times, the connection method is screw‑locked (T) , very stable to use
5、The shell material is made of thermoplastic PA66, with strong durability, sturdy, water resistant and light weight
Package List
1 x Water Resistant Type C Connector
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 6.63 Inch |
| Height | 1.17 Inch |
| Length | 7.41 Inch |
