Product Overview

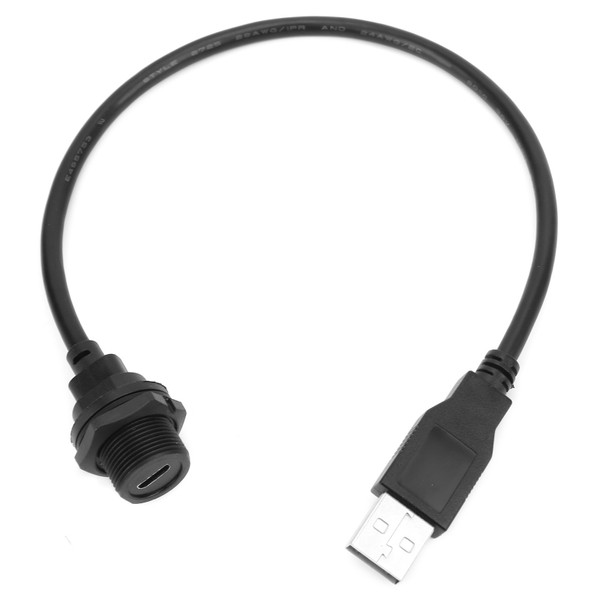

Item Type: Waterproof USB Connector
Product Model: E10MC-TF-F/U2-A-M
Thread Specifications: 5/8in-27UNS
Cable Length: Approx. 0.3meter / 1ft, 1meter / 3.3ft
Rated Current: 1.5A
Insulation Resistance: 2000mΩ
Applicable Temperature: -40℃~+105℃
Mating Times: ≥500 Times
Shell Material: Thermoplastic PA66
Flame Retardant Grade: V-0
Conductor Material: Brass
Cable Material: PVC jacket
Connection Method: Thread locking (T)
Waterproof Rating: IP67
Application Scenarios: Widely used in some waterproof application scenarios such as mechanical equipment, outdoor equipment, lamps, IOT devices, etc.
Product Model: E10MC-TF-F/U2-A-M
Thread Specifications: 5/8in-27UNS
Cable Length: Approx. 0.3meter / 1ft, 1meter / 3.3ft
Rated Current: 1.5A
Insulation Resistance: 2000mΩ
Applicable Temperature: -40℃~+105℃
Mating Times: ≥500 Times
Shell Material: Thermoplastic PA66
Flame Retardant Grade: V-0
Conductor Material: Brass
Cable Material: PVC jacket
Connection Method: Thread locking (T)
Waterproof Rating: IP67
Application Scenarios: Widely used in some waterproof application scenarios such as mechanical equipment, outdoor equipment, lamps, IOT devices, etc.
Features
1、Waterproof USB connector come with high waterproof grade IP67, which can protect the connection
2、Rich structure, support wired to wire, pre‑board installation, post‑board installation, PCB board type and various specifications with wire
3、Used in some waterproof application scenarios such as mechanical equipment, outdoor equipment, lamps, IOT equipment, etc.
4、Mating times ≥ 500 times, the connection method is screw‑locked (T), very practical to use
5、The shell material is made of thermoplastic PA66, which possess strong corrosion resistance, durable, waterproof and light weight
Package List
1 x Waterproof USB Connector
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 6.24 Inch |
| Height | 1.17 Inch |
| Length | 9.36 Inch |
