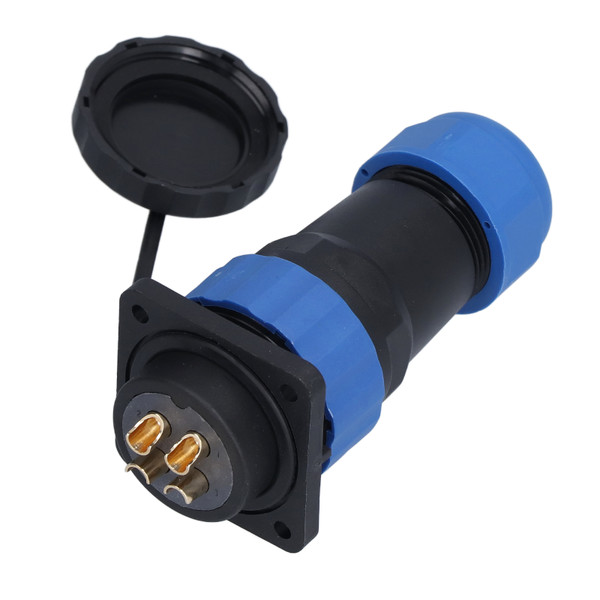

Waterproof Connector Square 4 Holes IP68 Aviation Power Socket 380V 45A for Cable Wire SP284 Pin

Item Type: Waterproof Connector
Material: PA66 + PPS + Silica Gel + Copper
Application: Widely used in communication equipment, instrumentation, computers, program controlled machine, alarm bridge electronic equipment, etc.
Shell Material: PA66, PA6
Insulator: Thermoplastic PPS (high temperature resistant 220℃).
Contact Material: Copper (gold plated).
Connection Method: Soldering (if solder paste is used, it must be cleaned).
Connection Method: Threaded connection.
Head Size: Approx. 28mm / 1.1in
Thread Specification: M28 x 1.5mm / 0.1in (approx.)
Insulation Resistance: 2000MΩ
Copper Needle Diameter: Approx. 3.6mm / 0.1in
Copper Pin Applicable Cable: ≤6mm²
Applicable Current: 45A
Applicable Voltage: 380V
Applicable Cables for Shell: Φ12-14.5mm²
Plugging Times: More than 500 times.
Operating Temperature Range: -25℃ to 85℃.
Tightness: Conform to IP68.

Features

1、Connector: The 380V 45A square waterproof connector with 4 holes has 28mm head size, which is very convenient to install.
2、Durability: Durable in plugging, the gold plated solid copper pin is anti oxidation and has a long service life as well.
3、Safe Using: The flexible shell is made of PA66 and PA6, resistant to corrosion and temperature, also not easy to break.
4、Firm Connection: Iron soldering can be applied to the cable connection, ensuring firmer connecting with extra reliability.
5、Application: Widely used in communication equipment, instrumentation, computers, program controlled machine and so on.

Package List

1 x Plug

1 x Socket
