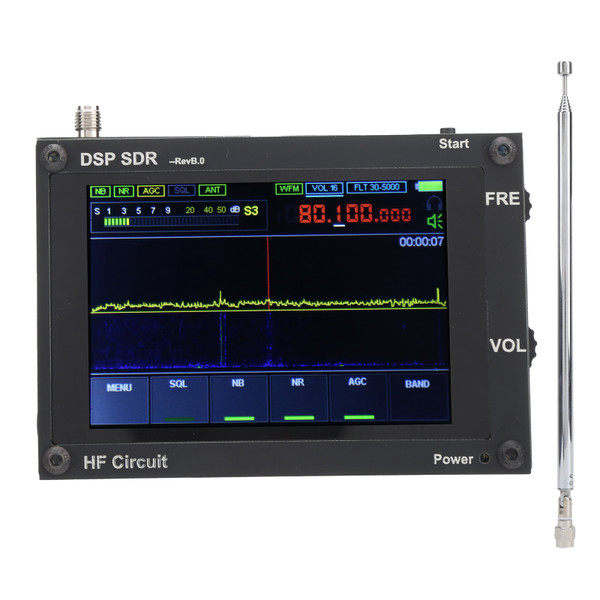

Wireless Receiver Black UltraThin DSP SDR HAM Receiving Radio Equipment 50kHz200MHz

Item Type: Wireless Receiver
Material: ABS
1) The receiver is based on the SDR principle architecture, and the function is determined by the loaded software;
2) The frequency range is from 50kHz--200MHz (non-registered version);
3) Support Demodulation Analog Modulation: AM, SSB, NFM, WFM, CW;
4) Powerful Functions: Variable filter width, adaptive noise suppressor, threshold noise suppressor, NoiseBlanker, AGC, equalizer;
5) Use msi001 in the RF front-end;
6) The processor core uses STM32H743 clocked at 480MHz;
7) 3.5-inch IPS display with touch screen;
8) The machine supports UHF UHF frequency band;
9) The operation mode includes two EC11 pulse encoders and capacitive touch screen;
10) It is powered by built-in battery and USB, and has linear lithium battery charging management, which can be charged through TYPE-C. The capacity of the built-in battery is not less than 2000mA/h.
11) The receiver power consumption is about 300mA;
12) The built-in LNA is used to improve the dynamic range of the receiver, and an extended version is designed to improve the shortwave HF band. The board is planned to be built into the receiver.
13) Connect to the computer via USB, you can transmit CAT, IQ and audio.
14) The screen display bandwidth is 160kHz, and it can be zoomed and displayed;
15) The sensitivity is 0.3μV under the condition of 250MHz;
16) Due to the characteristics of the msi001 chip used, the dynamic blocking range is about 85dB.
17) The screen backlight can be controlled;
18) Adopt high-quality sound cavity with bass diaphragm;
19) SMA type antenna socket;
Battery Model: Lithium battery
Battery Capacity: 2000 mAh
How to Use:
1. Open the package and take out the product
2. Install the antenna on the receiver
3. Press the power button to turn it on and use it
4. The product is rechargeable
5. After using up, press the shutdown button to shut down
Tip: Turn on the REST button before using it to boot

Features

1、The product is integrally formed without burrs, with a smoothly surface and installation.
2、The wireless receiver has a large heat dissipation area, which improves the service life better.
3、The receiver is light in weight and can be operated with one hand, reducing operator fatigue.
4、With variable filter width, adaptive noise suppressor, threshold noise suppressor and other functions.
5、The processor core uses STM32H743 clocked at 480MHz, and a 3.5-inch IPS display with a touch screen.

Package List

1 x Wireless Receiver

1 x Antenna
