Product Overview

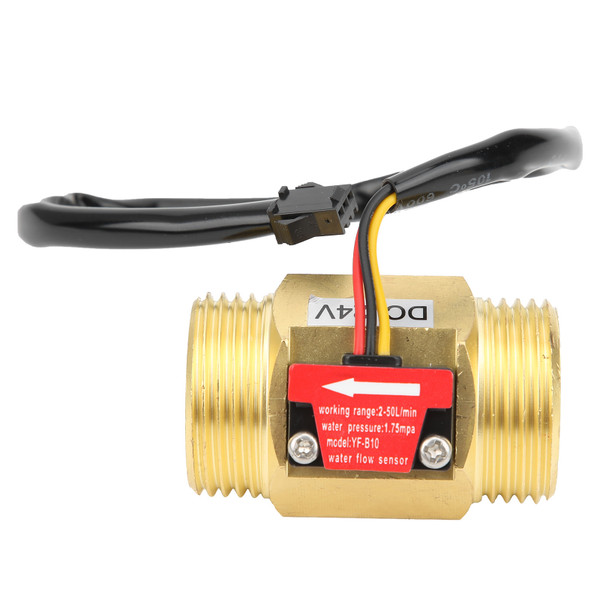

Item Type: Hall Flowmeter
Material: Brass
Model: YF-B10
Measuring Range: 2-6000 (m³/h)
Thread: G1in Male Thread
Water Pressure Resistance: >1.75MPa
Insulation Resistance: >100MΩ
Accuracy: 2~50L/MIN
Flow Pulse Characteristic: F=(8 x Q-4)+5%, F is the frequency, Q is L/Min
Output Pulse Duty Cycle: 50%±10%
Material: Brass
Model: YF-B10
Measuring Range: 2-6000 (m³/h)
Thread: G1in Male Thread
Water Pressure Resistance: >1.75MPa
Insulation Resistance: >100MΩ
Accuracy: 2~50L/MIN
Flow Pulse Characteristic: F=(8 x Q-4)+5%, F is the frequency, Q is L/Min
Output Pulse Duty Cycle: 50%±10%
Features
1、With G1in male thread, the water flow sensor can be installed well on your water pipe to measure the fluid flow in the pipe.
2、The water flow sensor is light in weight, flexible in outline, small in size, and easy to install and store.
3、The water flow sensor is stable, high temperature resistant, and can be started at low water pressure.
4、The sensor switch is made of brass, which has the characteristics of oxidation resistance and wear resistance, and has a long service life.
5、This hall Flowmeter can be used for water heaters, credit card machines, water vending machines, flow measurement equipment, etc.
Package List
1 x Hall Flowmeter
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.34 Inch |
| Height | 1.56 Inch |
| Length | 3.51 Inch |
