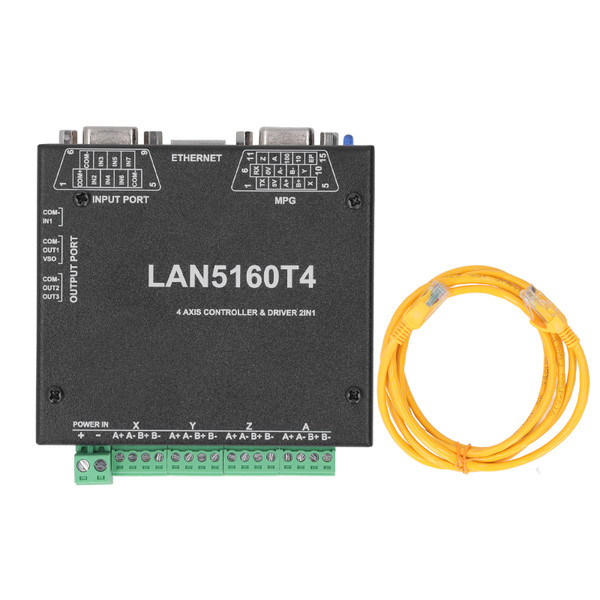

4 Axes Controller Driver 2 in 1 Ethernet Interface CNC Motion Control Board for MACH3

Item Type: 4 Axes Controller Driver
Control Period: 2ms
Maximum Pulse Frequency Per Axes: 300KHz
Maximum Subdivision: 256
Maximum Current: 6A
Support for Mach3 software and serial port MPG, through Ethernet connection and computer communication

Features

1、INPUT OUTPUT INTERFACE: Ethernet controller driver support Ethernet, with 7 common digital data input interface, 3 common digital data output interface; 1 0‑10V spindle speed analog output interface(support PWM output)
2、PULSE CONDITION: CNC motion controller driver can support 4 axes stepping system, each axes 300KHz pulse output. Compatible with pulse input, support standard pulse and digital display pulse
3、SUBDIVISION AND CURRENT: 4 axes controller driver each axes driver supports up to 256 subdivisions and 6A current per axes driver
4、FLEXIBLE AND ADJUSTABLE: 4 axes control board driver static current, running current, subdivision is adjustable. Adjust the position on the for mach3 plugin page
5、RELIABLE STRUCTURE: 4 axes controller driver adopts ARM design architecture. ARM design includes communication, code analysis, underlying algorithms and pulse generation. Reasonable design, reliable control, easy to operate

Package List

1 x 4 Axes Controller Driver

1 x Connecting Wire
