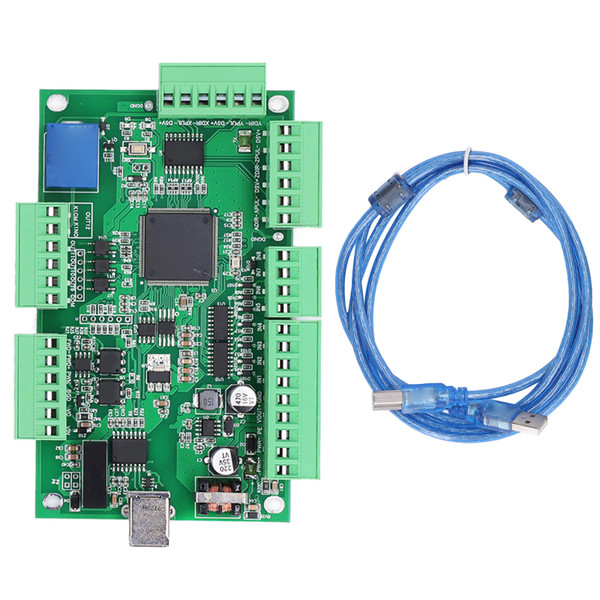

USB CNC Motion Controller Card Breakout Board 3 4 Axes Universal Engraving for Mach3

Features

1、SUPPORT SYSTEM: Support all for Windows versions, including for WINXP, for WIN7, for Win8, for WIN10 32 bit 64 bit system. USB does not need driver, all for Windows versions are plug and play, support hot plug
2、ULTRA RELIABLE AND SAFE: The USB bus adopts high grade chip magnetic coupling isolation, which is really valuable isolation, which is different from the optocoupler isolation input and output of general control cards. Achieves ultra reliability and absolutely guarantees the safety of computer USB. At the same time, guarantees strong EMC interference resistant ability
3、STABLE SYSTEM: Adopt single chip, the system is more compact, and the stability is many times higher than the general multi chip processing method
4、204MHZ CPU: Dual core ultra high speed CPU(single core maximum frequency of 204MHz) has great redundancy in computing processing capabilities. And guaranteed to achieve a pulse output frequency of 350KHz under 4 axes linkage(for FlyTiny has done frequency reduction processing to reduce the overall power consumption, and also meets the highest frequency requirements of the common anode connection method), which can be connected to servo or stepper
5、SMOOTH OPERATION: The size of the motion control buffer can be set to ensure the fastest interpolation cycle can run stably, and the computer can run smoothly when the load is too heavy
6、SUPPORTED INTERFACE: Has 8 isolated input ports, the input interface is simpler, the port can be dry or wet contact, the wiring is simpler, the dry contact method only needs to connect a physical switch to the ground wire externally, debugging is simple and clear, with a maximum of 5 channels output port
7、ADJUSTABLE OUTPUT: PWM and voltage isolation speed control output port (high speed isolation), PWM frequency can be set, duty cycle 0~1000 continuously adjustable, and with voltage output, stable output, output impedance 100 ohms

Package List

1 x USB CNC Motion Controller Card

1 x Data Cable
