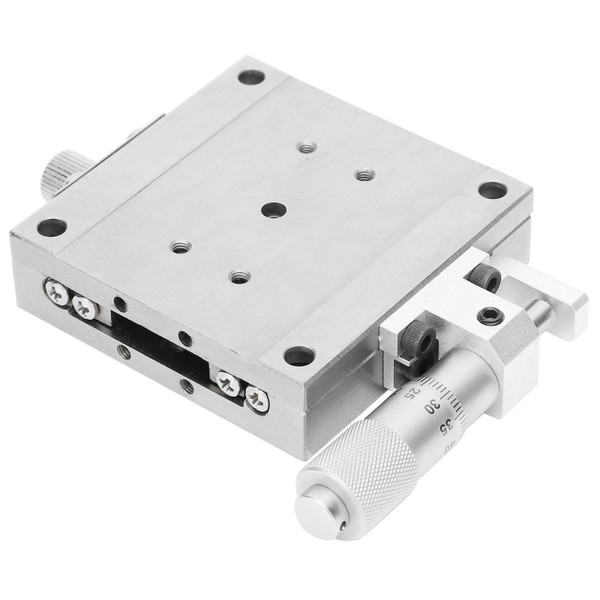

Product Overview
Item Type: Sliding Stage
Model: MXG-S60
Material: Stainless steel
A mechanical device that can provide linear motion for equipment
Moving Amount (mm): ± approx. 6.5mm / 0.3in
Sliding Table Surface (mm): Approx. 60 x 60mm / 2.4 x 2.4in
Withstand Load Level (N): 196
Withstand Load Vertical (N): 49
Movement Accuracy (μm):
Straightness: 1
Parallelism: 7
Movement Accuracy (second):
Swing Up and Down: 25
Swing Left and Right: 15
Allowable Moment Load (N·M):
Swing Up and Down: 10
Shake Left and Right: 10
Side Roll: 9
Moment Rigidity (second/N·cm):
Swing Up and Down: 0.08
Shake Left and Right: 0.08
Side Roll: 0.05
Parallelism (μm): 15
Rail Type: Ball
Model: MXG-S60
Material: Stainless steel
A mechanical device that can provide linear motion for equipment
Moving Amount (mm): ± approx. 6.5mm / 0.3in
Sliding Table Surface (mm): Approx. 60 x 60mm / 2.4 x 2.4in
Withstand Load Level (N): 196
Withstand Load Vertical (N): 49
Movement Accuracy (μm):
Straightness: 1
Parallelism: 7
Movement Accuracy (second):
Swing Up and Down: 25
Swing Left and Right: 15
Allowable Moment Load (N·M):
Swing Up and Down: 10
Shake Left and Right: 10
Side Roll: 9
Moment Rigidity (second/N·cm):
Swing Up and Down: 0.08
Shake Left and Right: 0.08
Side Roll: 0.05
Parallelism (μm): 15
Rail Type: Ball
Features
1、Made of stainless steel, wear‑resistant, corrosion‑resistant, waterproof and anti‑oxidation.
2、Accurate mechanical structure design makes it stable in work and high load‑bearing capacity.
3、The sliding stage large stroke, high displacement accuracy, easy to use.
4、A mechanical device that can provide linear motion for the equipment, which is more accurate and stable than aluminum alloy.
5、Widely used in production machinery, testing equipment, optical experimental measurement, fine‑tuning displacement, accurate positioning, quantitative movement, ect.
Package List
1 x Sliding Stage
Package Weight and Dimension
| Weight | 0.96 lb |
| Width | 3.9 Inch |
| Height | 1.95 Inch |
| Length | 3.9 Inch |
