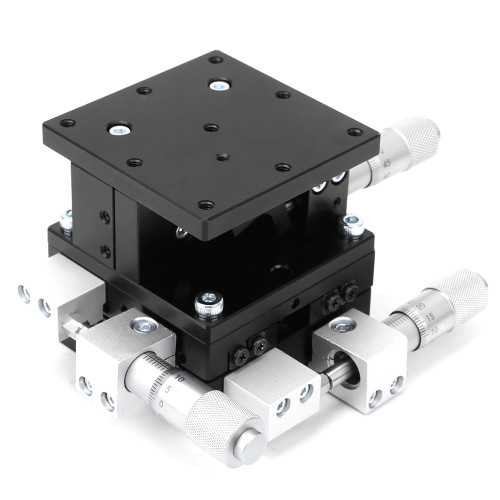

Product Overview
Model: LD90-LM
Material: Aluminum Alloy (Black anodized surface)
Table Size: Approx. 90 x 90mm / 3.5 x 3.5in
Moving Rail: Cross rail
Drive Mode: Micrometer
Direction of Movement: XYZ 3-Axes DOF
XY Axes Travel: ±12.5mm
Z Axes Travel: 10mm
Load: 49N（5kgf）
Minimum Scale: 0.01mm
Accuracy: 0.03mm
Parallelism: 0.03mm
Scope of Application: Production machinery, testing equipment, optical experimental measurement, fine-tuning displacement, precision positioning, quantitative movement and so on.
Features
1、Suitable for production machinery, testing equipment, optical experimental measurement, fine-tuning displacement, precision positioning, quantitative movement and so on.
2、XYZ 3-Axes DOF can be adjusted, internal cross rail, high precision, strong load bearing.
3、Nickel plated locking screw, nickel plated fine adjustment knob.
4、Carbide side head, tighter lock, no rust in complex environment, more durable, corrosion resistant.
5、It adopts high-strength bearing steel cross guide rail, which has strong bearing capacity, stable work and better wear resistance.
6、The surface of the guide rail is electroplated and can be used in complex environments, corrosion resistant and rust resistant.
7、Micrometer driving method with an accuracy of 0.03mm.
Package List
1 x Linear Stage Trimming Platform
Package Weight and Dimension
| Weight | 2.99 lb |
| Width | 5.46 Inch |
| Height | 3.12 Inch |
| Length | 5.85 Inch |
