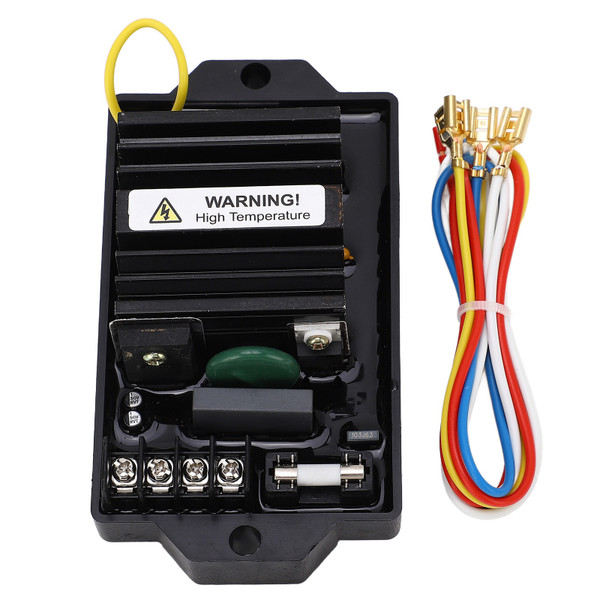

Automatic Voltage Regulator 20A Brushless Excitation Generator Voltage Regulator Module Diesel Genset AVR 0‑115V DC

Item Type: Automatic Voltage Regulator
Material: ABS
Phase: Single Phase
Frequency: 50/60Hz
Frequency Protection Adjustment Range: 40-50Hz
Output Current: 20A Continuous
Power Output Pole: Half Wave Thyristor
Internal Fuse: 10A (Fast Fuse)
Operating Temperature: -10℃ (14℉) to 60℃ (140℉)
Storage Temperature: -20℃ (-4℉) to 80℃ (176℉)
Maximum Humidity: 95% Non Condensing
Fixed Center: Approx. 115mm/4.5in, 2xM6

Features

1、Output Performance: The regulator is output by half wave thyristor, with output current of 0 to 20A, output voltage of 0 to 115V.
2、Fixed Voltage Output: The voltage regulator is an electronic device that allows the generator to produce a fixed output voltage.
3、Stable Regulation: The regulator has built in voltage regulation, provides stability regulation, and has remote voltage regulation function.
4、Low Frequency Protection: The regulation board has no relay circuit design, with low frequency protection, safe and reliable for use.
5、Wide Compatibility: The regulator adopts a simple connection method and is compatible with various types of generators.

Package List

1 x Automatic Voltage Regulator

1 x Manual

4 x Wire
