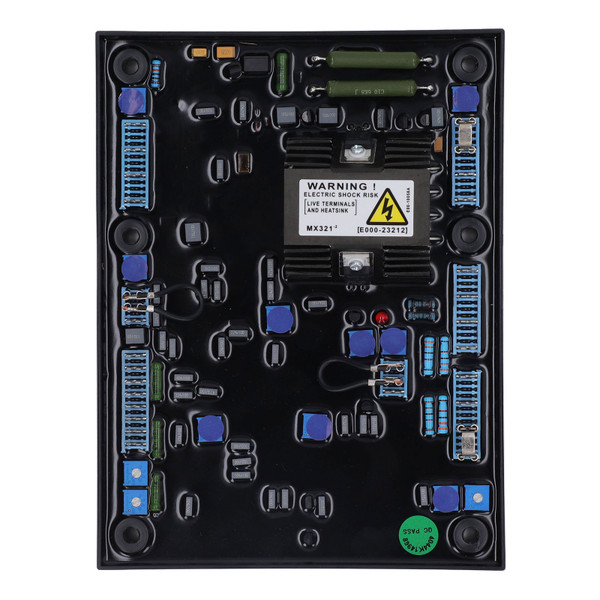

Product Overview
Material: ABS
Power Input:
Induction Input:
Output:
Current: Continuous current 3.7A, intermittent current 6A for 10s
Features
1、Power Input and Induction Input: The AVR module has the power input voltage of 170‑220VAC maximum, 3 phase 3 wire and the induction input voltage is of 190‑264VAC maximum, 2 or 3 phase.
2、Multi Protection: This AVR board is built in protection features such as low speed protection, over excitation protection, surge protection, over current protection and LAM protection.
3、Output: The automatic voltage regulator has the output voltage of 120VDC maximum and the current of continuous current 3.7A, intermittent current 6A for 10s.
4、Interference Reduction: The automatic voltage regulator is part of the excitation system of the brushless generator. The excitation power is derived from a three phase permanent magnet generator (PMG) to isolate the AVR control circuit from non linear loads and to reduce RF interference at the generator terminals.
5、Professionally Manufactured: The automatic voltage regulator is professionally manufactured with excellent workmanship and high reliability to run the generator at both high and low voltage.
Package List
1 x Generator Set Automatic Voltage Regulator
1 x Manual
Package Weight and Dimension
| Weight | 1.49 lb |
| Width | 6.63 Inch |
| Height | 2.73 Inch |
| Length | 9.36 Inch |
