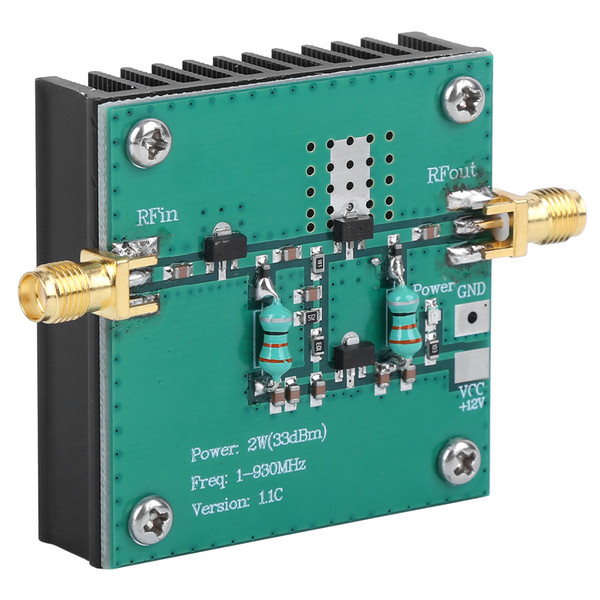

Product Overview
Item Type: RF broadband power amplifier
Material: Glass fiber, aluminum alloy
Working Frequency: 1--930MHz
Input Power: 1mW (0dBm)
Maximum Output:
2.0W (33dBm) low frequency end (10 MHz)
1.6W (32dBm) intermediate frequency end (512 MHz)
1.0W (30dBm) high frequency end (930 MHz)
0.8W (29dBm) high frequency end (1000MHz)
Working Voltage: 12V (DC)
Working Current: 300--400mA (determined by output power)
RF Connector: Standard SMA female
Size: Approx. 50 x 50 x 15mm / 2 x 2 x 0.6in (length x width x height)
Product Weight: Approx. 55 g / 1.9 oz(blackening of heat sink)
Material: Glass fiber, aluminum alloy
Working Frequency: 1--930MHz
Input Power: 1mW (0dBm)
Maximum Output:
2.0W (33dBm) low frequency end (10 MHz)
1.6W (32dBm) intermediate frequency end (512 MHz)
1.0W (30dBm) high frequency end (930 MHz)
0.8W (29dBm) high frequency end (1000MHz)
Working Voltage: 12V (DC)
Working Current: 300--400mA (determined by output power)
RF Connector: Standard SMA female
Size: Approx. 50 x 50 x 15mm / 2 x 2 x 0.6in (length x width x height)
Product Weight: Approx. 55 g / 1.9 oz(blackening of heat sink)
Features
1、RF broadband power amplifier uses a radiator design to keep long‑term stability.
2、Broadband RF low power amplifier is with wide operating frequency from 1 to 930MHz.
3、Standard SMA female RF connector helps such RF amplifier module with easy connection.
4、Not require particularly complicated operations, this power amplifier's installation is simple.
5、With good wiring, such amplifier board's quality is guaranteed, you can use it with confidence.
Package List
1 x RF Broadband Power Amplifier
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.51 Inch |
| Height | 1.17 Inch |
| Length | 4.68 Inch |
