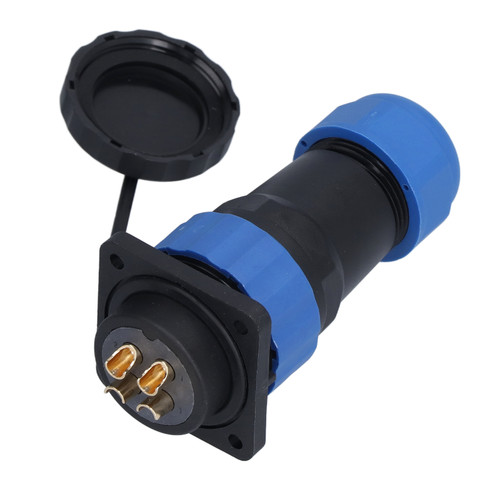

Waterproof Connector Back Nut IP68 Aviation Power Socket 5A for Cable Wire SP28

Item Type: Waterproof Connector
Material: PA66 + PPS + Silica Gel + Copper
Application: Widely used in communication equipment, instrumentation, computers, program controlled machine, alarm bridge electronic equipment, etc.
Shell Material: PA66, PA6
Insulator: Thermoplastic PPS (high temperature resistant 220℃).
Contact Material: Copper (gold plated).
Connection Method: Soldering (if solder paste is used, it must be cleaned).
Connection Method: Threaded connection.
Head Size: Approx. 28mm / 1.1in
Thread Specification: M28 x 1.5mm / 0.1in (approx.)
Insulation Resistance: 2000MΩ
Contact Diameter: Φ1mm
Rated Current: 5A
Contact Wire Gauge(mm²/AWG): ≤0.75/18
Applicable Cables for Shell: Φ12-14.5mm²
Plugging Times: More than 500 times.
Operating Temperature Range: -25℃ to 85℃.
Tightness: Conform to IP68.

Features

1、Connector: With M28 x 1.5mm thread, the installation of this 5A waterproof connector is very simple.
2、Durable Use: Gold plated solid copper contact is very durable in plugging and also resistant to oxidation.
3、Safe Using: The shell is made of PA6 and PA66 materials, which is resistant to corrosion and temperature.
4、Firm Connection: A soldering iron can be used to make the connection firmer and more reliable, very easy.
5、Broad Using: Allows for free application in communication equipment, instrumentation, computers, etc.

Package List

1 x Plug

1 x Socket
