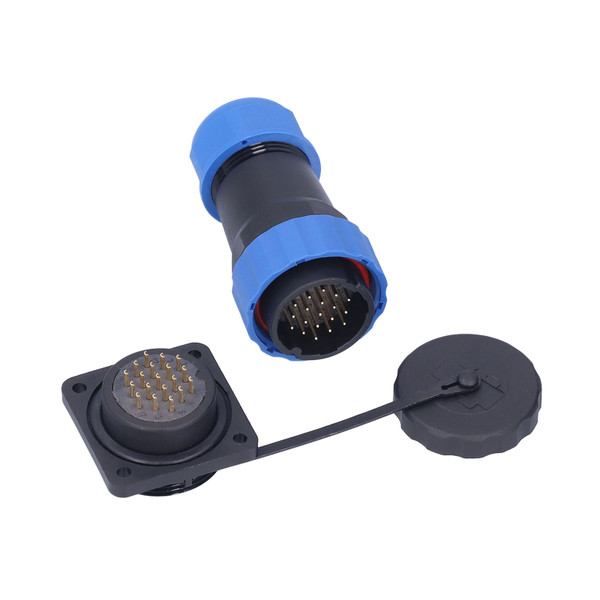

Waterproof Plug Socket Square Flange 4 Hole Aviation Power Wire Connector AC 5A SP28

Item Type: Waterproof Plug Socket
Material: PA66, PPS, silicone, copper
Uses: Widely used in communication equipment, instrumentation, computers, program controlled machines, alarms and electronic equipment, etc.
Shell Material: PA66, PA6
Insulator: Thermoplastic PPS (high temperature resistant 220℃)
Contact Material: Copper (gold plated)
Wiring Method: Soldering (if solder paste is used, it must be cleaned)
Connection Method: Threaded connection
Head Size: Approx. 28mm / 1.1in
Thread Specification: M28 x 1.5mm
Insulation Resistance: 2000MΩ
Contact Diameter: Approx. 1mm / 0.04in
Rated Current: 5A
Contact Wire Gauge: ≤0.75mm²/18AWG
Shell Applicable Wire: 12-14.5mm²
Mounting Hole Distance: Approx. 30 x 30mm / 1.2 x 1.2in
Mating Times: More than 500 times
Operating Temperature Range: -25℃ to 85℃
Tightness: Comply with IP68

Features

1、Simple Installation: The waterproof plug socket connector is square 4 hole installation design, and the conductive wire is connected by welding.
2、IP68 Protection: IP68 aviation grade sealing waterproof, and with silicone sealing ring, the connection is tight and no leakage.
3、Copper Contacts: Using copper plated gold contacts, it has good electrical conductivity and oxidation resistance.
4、Durable Shell: The shell is made of PA66 and PA6 materials, which have good corrosion resistance and flexibility, and will not crack due to low temperature.
5、Wide Applications: Widely used in marine equipment, communications, instrumentation, computers, alarms and electronic equipment, etc.

Package List

1 x Male Plug

1 x Female Socket
