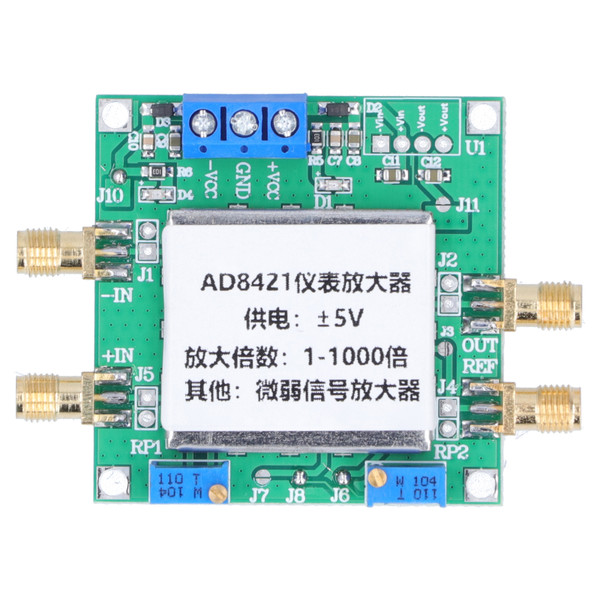

Product Overview
Item Type: Amplifier Module
Material: PCB
Model: AD8421
Maximum Power Supply Current: 2.3mA
Input Offset Voltage Drift: 0.2 μV/℃ (Maximum)
Maximum Gain Drift: 1 ppm/℃ (G = 1)
Input Bias Current: 500 pA (Maximum)
Material: PCB
Model: AD8421
Maximum Power Supply Current: 2.3mA
Input Offset Voltage Drift: 0.2 μV/℃ (Maximum)
Maximum Gain Drift: 1 ppm/℃ (G = 1)
Input Bias Current: 500 pA (Maximum)
Features
1、Adopt a unique protection method to ensure robust input while maintaining extremely low noise.
2、Low level signal submerged in high requency common mode noise can be extracted in a wide temperature range.
3、Excellent distortion performance, suitable for demanding applications such as vibration analysis.
4、AD8421 amplifier module uses PCB to ensure good passing performance of large and small currents.
5、Heat dissipation area is large, the service life is longer, and there is no need to worry about heat generation during operation.
Package List
1 x Amplifier Module
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.34 Inch |
| Height | 0.78 Inch |
| Length | 3.12 Inch |
