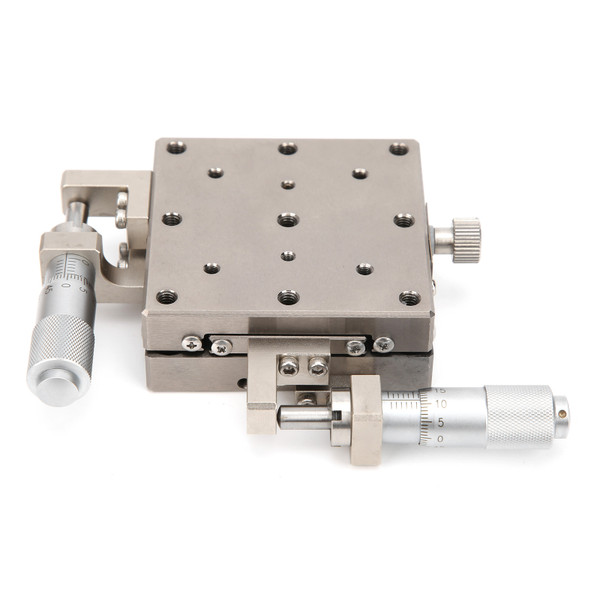

Sliding Table XYAxis Aluminum Alloy Gear Knob Tuning Slide Stage Manual Trimming Platform

Item Type: Sliding Table
Table Size: Approx. 60 x 60mm / 2.4 x 2.4in
Bearing Load: 100N
Movement Amount (XY Distance): Approx. ±10mm / 0.4in
Sliding Table Material: Aluminum alloy
Feeding Method: Fine-tuning knob type
Moving Guide Method: Linear ball guide
Exterior Treatment: Electroless nickel plating
Horizontal Movement Accuracy: 12μm
Vertical Movement Accuracy: 3μm
For Misumi Model: XYSSG60

Features

1、The main body is made of aluminum alloy, which is resistant to friction and corrosion, and is silent in operation.
2、The linear ball-guided movement method can maintain high load resistance and stable movement.
3、Gear rotation handle control, manual control displacement platform measurement will be more accurate.
4、The exterior is treated with electroless nickel plating, with uniform thickness, good throwing ability and stable performance.
5、Suitable for optical equipment, measuring instruments, semiconductor manufacturing equipment, microscopes, photographic equipment, etc.

Package List

1 x Sliding Table
